• Automatic Steel Wire Mesh Welding Machine WZ-1200B

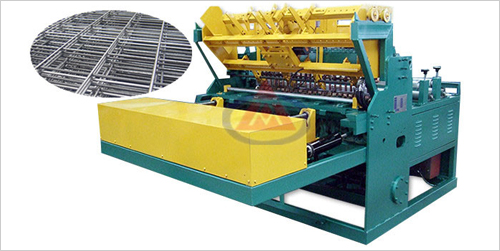

Automatic Steel Wire Mesh Welding Machine WZ-1200B

Automatic Steel Wire Mesh Welding Machine WZ-1200B adopts electrical & electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit.

Product Details

Quick Details Parameter

Wire diameter: : 3.0-5.0mm
Weft spacing: : 50-200mm
Warp spacing: : 50-200mm
Width: : 1200mm
Welding speed: : 50times/min
Welding spots: : 24
Warp form: : continuous
Weft form: : Pre-cut wire
Rated voltage: : 380V
Rated power: : 125KVA×3
Dimension: : 2750×1700×1800mm
Weight: : 2.2T

Description

Function features of Automatic Steel Wire Mesh Welding Machine WZ-1200B
1.Automatic Steel Wire Mesh Welding Machine WZ-1200B adopts electrical & electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit. This operation is accurate. It has stable function ,firm welded point and with out welded tracks.
2.The line wires are fed from coils, the cross wires are fed from precut wires.
3.Mesh pulling system adopts elastic tension link and opening  positioning mesh, it is easy to regulate the mesh hole and mesh opening size is rather accurate, welding aperture could adjust randomly with range. Not only welding speed is fast but also it is easy to learn and operate. Only two men can finish the operation.

Automatic Steel Wire Mesh Welding Machine WZ-1200B

Products & Application of Automatic Steel Wire Mesh Welding Machine WZ-1200B:
casting floor mesh in the building, construction and so on.
