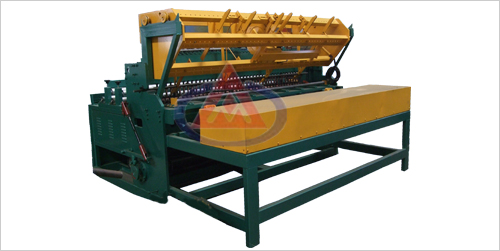

Automatic Construction Steel Wire Mesh Welding Machine

Automatic Construction Steel Wire Mesh Welding Machine WZ-2500C adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.

Product Details

Quick Details Parameter

Wire diameter: : 3.0-5.0mm
Weft/Warp spacing: : 50-200mm
Width: : 2500mm
Welding speed: : 60times/min
Welding spots: : 51
Warp form: : continuous
Weft form : Pre-cut wire
Rated power: : 100KVA×7
Weight: : 3.2T

Description

Automatic Construction Steel Wire Mesh Welding Machine

Function features of Automatic Construction Steel Wire Mesh Welding Machine WZ-2500C
1. Automatic Construction Steel Wire Mesh Welding Machine WZ-2500C adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
2. The warp is fed from coils; the weft is precut, fed from hopper driven by stepper motor.
3. Mesh pulling system adopts elastic tension link and opening positioning equipment, the opening is easy to regulate accurately and can be adjusted freely within a certain range.
4. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
5. The finished products can be in coil or in panel.

Products & Application:Mesh used in casting floor, construction and so on.Note: We can also customize the machine based on our customers' special requirements.

Company Profile

Anping Wanzhong Wire Mesh Products Co., Ltd. is specialized in producing reinforcing construction mesh welding machine, breeding mesh welding machine, steel wire mesh welding machine, wire mesh fence welding machine, automatic steel wire mesh welding machine, 3D wire mesh panel machine, cattle fence machine, chain link mesh machine, welded wire mesh machine and so on.
Our machines are mainly used in the fence for highway, railway, airport, garden, hardware, wire mesh for construction, etc.
Our company has advanced production equipment, first-class technologies and a complete quality management system. With good quality, reasonable prices and excellent services, we have exported our goods to the USA, Mexico, New Zealand, the Middle East, Italy, Turkey, Southeast Asia, Singapore and so on.
Our after-sales service team provides comprehensive support and assistance for WANZHONG's customers worldwide, during both the installation and commissioning periods, as well during the entire service life of our products. Highly qualified technicians are available to make service visits to customers and carry out maintenance.
Spare parts are available, and can be purchased, for all equipment supplied by WANZHONG. And Wanzhong will give advice and provide assistance in handling spare parts.
We would like to cooperate with business friends from home and abroad. For more information, please feel free to contact us.
