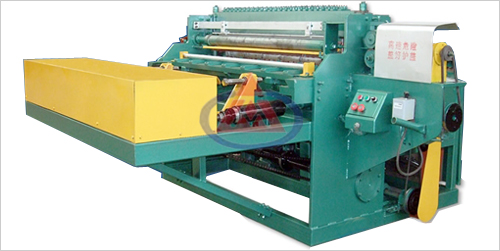

• Automatic Building Steel Wire Mesh Welding Machine WZ-1200C

Automatic Building Steel Wire Mesh Welding Machine WZ-1200C

Automatic Building Steel Wire Mesh Welding Machine WZ-1200C adopts electrical electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit.

Product Details

Quick Details Parameter

Wire diameter: : 1.5-2.5mm
Weft spacing: : 50-150mm
Warp spacing: : 50-150mm
Width: : 1200mm
Welding speed: : 80times/min
Welding spots: : 25
Warp form: : continuous
Weft form: : continuous
Rated voltage: : 380V
Rated power: : 36KVA×2
Dimensions: : 2500×2500×1500mm
Weight: : 2.2T

Description

Function features of Automatic Building Steel Wire Mesh Welding Machine WZ-1200C
1.Automatic Building Steel Wire Mesh Welding Machine WZ-1200C adopts electrical electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit. This operation is accurate. It has stable function ,firm welded point and without welded tracks.
2.The cross and line wires are both fed from coils.
3.This machine is equipped with precise equipment for weft cutting and position, so the length of wefts is identical and regular, it is unnecessary to slice the side at all.
4.Mesh pulling system adopts elastic tension link and opening  positioning mesh, it is very easy to regulate the mesh hole and mesh opening size is rather accurate, welding aperture could adjust randomly with range. Not only welding speed is fast but also it is easy to learn and operate. Only two operators can do this work.
5.The finished products can be in coil or in panel.

Automatic Building Steel Wire Mesh Welding Machine WZ-1200C

Products Application of Automatic Building Steel Wire Mesh Welding Machine WZ-1200C
1.mesh fence、casting roof mesh in the building.
2. 3d panel covered mesh, floor warmness preserving mesh, seedbed mesh, floor room mesh andother construction.

Company Profile

Anping Wanzhong Wire Mesh Products Co., Ltd. is specialized in producing reinforcing construction mesh welding machine, breeding mesh welding machine, steel wire mesh welding machine, wire mesh fence welding machine, automatic steel wire mesh welding machine, 3D wire mesh panel machine, cattle fence machine, chain link mesh machine, welded wire mesh machine and so on.
Our machines are mainly used in the fence for highway, railway, airport, garden, hardware, wire mesh for construction, etc.
Our company has advanced production equipment, first-class technologies and a complete quality management system. With good quality, reasonable prices and excellent services, we have exported our goods to the USA, Mexico, New Zealand, the Middle East, Italy, Turkey, Southeast Asia, Singapore and so on.
Our after-sales service team provides comprehensive support and assistance for WANZHONG's customers worldwide, during both the installation and commissioning periods, as well during the entire service life of our products. Highly qualified technicians are available to make service visits to customers and carry out maintenance.
Spare parts are available, and can be purchased, for all equipment supplied by WANZHONG. And Wanzhong will give advice and provide assistance in handling spare parts.
We would like to cooperate with business friends from home and abroad. For more information, please feel free to contact us.
