Asphalt Mixing Plant-Separated Bins

Aggregate Batching and Supplying System: Aggregate batching and supplying system is composed by ground aggregate bins and conveying belts. Ground aggregate bins adopt adjustable gate structure.

Product Details

Quick Details

Description

Type

LB-600

LB-800

LB-1000

LB-1200

Production

48t/h

64t/h

80t/h

96t/h

Power

205kW

210kW

220kW

255kW

Capacity

600kg

800kg

1000kg

1200kg

Fuel consumption

6.5kg/t

Weighing accuracy

Aggregate:+(-)0.5% Cement:+(-)0.5% Bitumen:+(-)0.25%

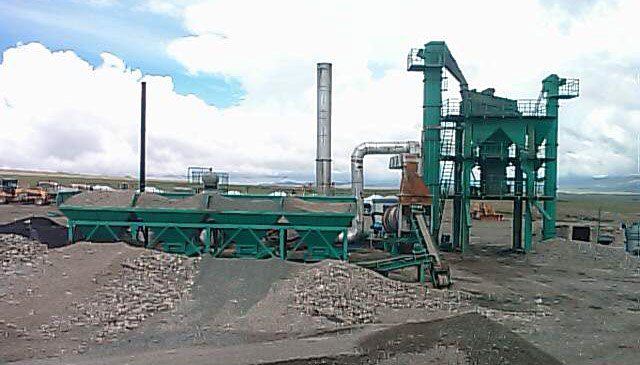

Aggregate Batching and Supplying System: Aggregate batching and supplying system is composed by ground aggregate bins and conveying belts. Ground aggregate bins adopt adjustable gate structure. User can adjust the charging size according to the practice demand, which can greatly satisfy with different users'demand. The conveyor belt from ground aggregate bin is driven by frequency transformation motor, which achieves speed stepless adjustment. So that Aggregate batching accuracy can reach +(-)1%. Under frequency transformation control, charging equipment failure is very low, which can prevent motor damaging and belts fault when it happen stone blocking in normal work .

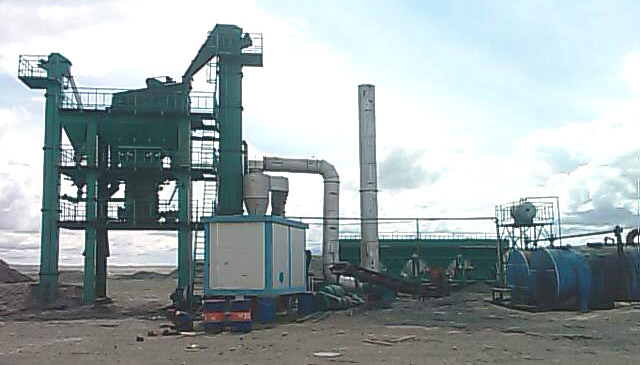

Asphalt Mixing Plant-Separated Bins

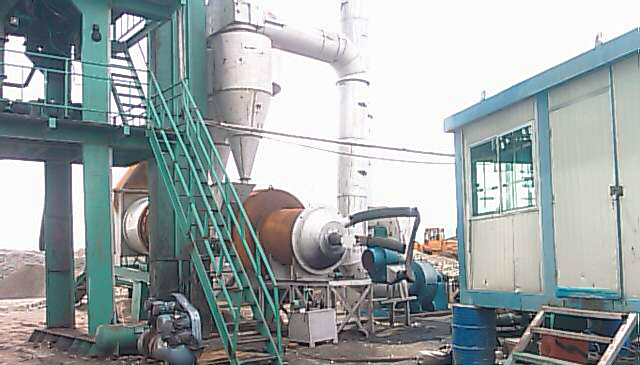

Stone Drying System: The system consists of burner, fuel supplying system, dryer drum and automatic temperature control device. The drum adopts four speed reducers to control small friction wheel, which make big rolling circle rotate. It makes the whole equipment stress even and run smoothly. There are all kinds of different model wear-resistant vane installed rationally in the drum. It makes fuel consumption and drying achieve max heat exchanging. Burner adopt high-efficiency burning device and adjust in big proportion, to make fuel consumption and drying in best condition. With high-precision temperature control device, it achieves discharging temperature to control automatically, which make discharging temperature controlled in 5% proportion.

Asphalt Mixing Plant-Separated Bins

Air Reverse-jet Bag-type Dust Collector: We adopt special bag design, make the structure compact and clean easily. We also adopt import Duapond temperature-resistant filtering bag, which can achieve 250℃, smoke concentration is less than 100mg/Nm3, meet the national environmental protection requirements. Special design reverse-jet structure, very big filtering space and steam jacket type structure make the dust collecting system work much more stable. Filtering bag is not easy to dew and burn. Special design reverse-jet structure has greatly enhanced the dusting efficiency and filtering bag life. Dust collected by bag is transported to recycling cans by screw conveyor system in the bottom of the box.

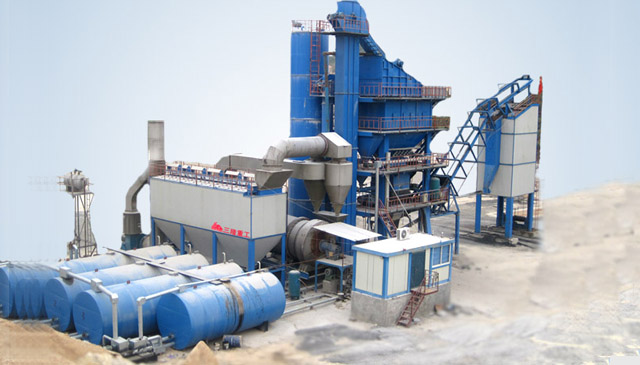

Asphalt Mixing Plant-Separated Bins

Vibrating Screens: Using two layers of four stages of vibrating sieve efficiency, using pull hook fixation. The entire screen is changing fast, convenient and flexible, excitation can be adjusted by the eccentric block, flexible adjustment amplitude loading. Vibration damping rubber has made in the bottom of vibrating screens, which will reduce the main part of measure effect.

Asphalt Mixing Plant-Separated Bins

Main Features
1、The mixer uses the high strength wearable material which increases the service life.
2、Total dust collection with 1st-level inertial collecting,2nd-level wet collecting and negative pressure design for complete tower modules, not only practical and economic, but to reduce initial cost for the customer;
3、The linear-mode screen driven by imported vibrator improves the screen efficiency and reduces the failure rate of plant;
4、The hot elevator adopts the double Gall's chain for hoisting, which not only prolongs the service life of the hoisting machine but also improves the running stability;
5、The optimized flights structure of drying drum makes the drying system more effective and stable;
6、Overall modular design makes the transportation and installation more convenient and fast;
7、The computer-controlled system, auto/manual switchable, and auto self-diagnosis program makes the operation easy and safe;
Product:LB-600 LB-800 LB-1000 LB-1200 LB-1500 LB-2000 LB-2500 LB-3000

Company Profile

Quanzhou City Sanlong Heavy Industry Co., Ltd. is a professional manufacturer of construction machinery. We are a comprehensive high-tech enterprise integrating design, development, manufacture, and installation, based on cooperation with famous University and Research Institute.

Sanlong is one of the earliest enterprises that passed ISO9001 quality system certification in Chinese construction machinery industry. For many years, Sanlong people constantly develop new products according to market demand and time development with realistic attitude, innovation spirit, and advanced technology.

At present, Sanlong brand soil-cement mixing plants, concrete mixing plants, and lime crushing plants are sold all over the country. The technical performance reaches the domestic advanced level and closed to the international advanced level, which has enjoyed a good reputation in China.

We not only supply superior equipment, but also provide manufacturing technique and professional technology for you freely. That is to say, our expertise will provide guidance for every step such as project planning and implementing, equipment installing and adjusting, technical training and maintaining to guarantee your products with high quality and build up your brand. Our equipment' reliability and safety have been widely recognized by many users. Meanwhile, we have already established perfect service system, offering prompt, thorough, continuous and excellent pre-sales, mid-sales and after-sales services for every old and new customer.
