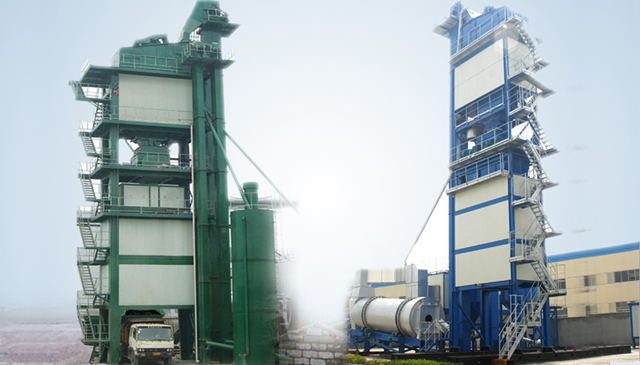

Asphalt Mixing Plant-Integrated Bins

The integrated bins for finished product greatly decrease the land-occupation of equipment, no elevating system for reduce the failure rate of plate.

Product Details

Quick Details

Description

Type

LB-1000

LB-1500

LB-2000

LB-2500

LB-3000

Production

80t/h

120t/h

160t/h

200t/h

240t/h

Power

255kW

360kW

500kW

550kW

670kW

Mixer Capacity

1000kg

1500kg

2000kg

2500kg

3000kg

Fuel oil consumption

6.5KG/T

Weighing accuracy

Aggregate:+(-)0.5% Cement:+(-)0.5% Bitumen:+(-)0.25%


1、The integrated bins for finished product greatly decrease the land-occupation of equipment, no elevating system for reduce the failure rate of plate.
2、Put dust bag filter above the dryer drum to reduce heat loss and save fuel and space.
3、The liner-mode screen driven by imported vibrator improves the screening efficiency and reduces the failure rate of plate.
4、The hot elevator adopts the Gail's chain for hoisting, which nor only prolongs the services life of the hoisting machine but also improves the operation stability.
5、The unique paddies design and the powerful mixer make the mixing operation more easy, effective and reliable.
6、The optimized flights structure of drying drum makes the drying system more effective and stable.
7、The RAP interface is reserved for upgrade hot RAP facilities.
8、The dual computer-controlled system, auto/manual switchable, and auto self-diagnosis program, make the operation easy and safe.
9、The modular design makes the transportation and installation more convenient and fast.

Asphalt Mixing Plant-Integrated Bins

Environment Protection
1、Total dust collection with 1st-level inertial collecting, 2nd-level bag house and dust collecting modules for various portions of facilities
2、We establish environment protection concepts according to the European standards to achieve in dust emission, emission and noise control, ect.
3、The facilities are in green harmony with the environment wherever we go.

Company Profile

Quanzhou City Sanlong Heavy Industry Co., Ltd. is a professional manufacturer of construction machinery. We are a comprehensive high-tech enterprise integrating design, development, manufacture, and installation, based on cooperation with famous University and Research Institute.

Sanlong is one of the earliest enterprises that passed ISO9001 quality system certification in Chinese construction machinery industry. For many years, Sanlong people constantly develop new products according to market demand and time development with realistic attitude, innovation spirit, and advanced technology.

At present, Sanlong brand soil-cement mixing plants, concrete mixing plants, and lime crushing plants are sold all over the country. The technical performance reaches the domestic advanced level and closed to the international advanced level, which has enjoyed a good reputation in China.

We not only supply superior equipment, but also provide manufacturing technique and professional technology for you freely. That is to say, our expertise will provide guidance for every step such as project planning and implementing, equipment installing and adjusting, technical training and maintaining to guarantee your products with high quality and build up your brand. Our equipment' reliability and safety have been widely recognized by many users. Meanwhile, we have already established perfect service system, offering prompt, thorough, continuous and excellent pre-sales, mid-sales and after-sales services for every old and new customer.
