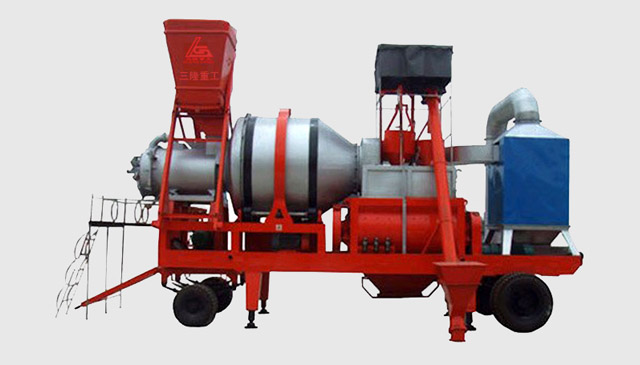

• Asphalt Mixing Plant-Forced Mixing Type

Asphalt Mixing Plant-Forced Mixing Type

Asphalt Mixing Plant-Forced Mixing Type Integrated design of drying drum and horizontal twin-shaft mixer, more even mixing and better asphalt.

Product Details

Quick Details

Description

Model

QLB-10

QLB-15

QLB-20

QLB-30

QLB-40

QLB-60

QLB-80

Capacity

10t/h

15t/h

20t/h

30t/h

40t/h

60t/h

80t/h

Power

oil

41.5kW

54kW

63.5kW

104.5kW

125kW

157.5kW

200kW

coal

57.5kW

75kW

86.5kW

127.5kW

169kW

205kW

276kW

Batcher

--

--

2.3M3x3

5M3x3

5M3x3

5M3x3

5M3x4

Finished Asphalt Bin

2t

5t

5t

9t

9t

9t

20t

Discharging Temperature

120-180, (adjustable)

Fuel Consumption

oil :5-7.5kg/t(oil) fuel:13-15kg/t(coal)

Options

coal mill, watery collector, bag collector, control room, asphalt heating tank


1、Integrated design of drying drum and horizontal twin-shaft mixer, more even mixing and better asphalt.
2 、Accurate weighing and stable quality.
3、Simple structure, easy operation, drying while drum rotate in counter-clockwise direction (from burner), discharging while drum rotates in clock direction (from burner).
4、PLC control, touch screen, auto/manual switchable.
5、Towing chassis for easy transport and installation. Burner is available for coal and oil, at customer's option.
