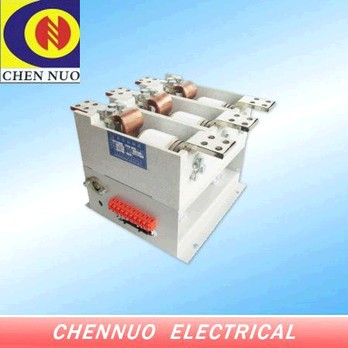

AC Contactor 2000V Vacuum Contactor

ac contactor 110V vacuum contactor. contactor for hoist and electric control equipment. 15Years electric production experience.

Product Details

Quick Details Parameter

Place of Origin: : Henan, China
Brand Name: : CHEN NUO
Model Number: : CKJ40
Electricity Type: : AC
Number of Pole: : 3
Phase: : 3
Main Circuit Rating Voltage: : 2000V
Main Circuit Rating Current: : 1600A
Rated current: : 1250A 1600A 2000A
Rated voltage: : 2KV

Description


AC Contactor 2000V Vacuum Contactor

Detail description

This series of vacuum contactors main used for AC 50-60hz, main circuit rated voltage 1.6kv below the rated current from 630A-1250A power network systems for remote making and breaking and frequent starting and control of AC motors, transformers and capacitor banks and other occasions.
Advantages: good compatibility, stable and reliable performance, free maintenance and long service life, is old-fashioned contactor is the ideal substitute of products


Main Tech-Parameter

CKJ40 Series   vacuum contactor 1250A 1600A 2000A
ModelTech parameter
1250/2KV
1600A/2KV
2000/2KV
Main circuit rated voltage (V)
2000
2000
2000
Main circuit rated current (A)
1250
1600
2000
Main circuit making capacity
(A/100times)
8000
10000
10000
Main circuit break-make
ability (A/10times)
8000
8000
8000
Maximum break ability (A/3times)
10000
10000
10000
Electricity life AC3(times)
60 0000
60 0000
60 0000
Electricity life AC4 (times)
10 0000
10 0000
10 0000
Mechanical life (times)
100 0000
100 0000
100 0000
Rated operate frequency AC3 (times)
200
200
200
Rated operate frequency AC4 (times)
100
100
100
Clearance between open contacts (mm)
5±0.5
5±0.5
5±0.5
Over travel (mm)
2±0.5
2±0.5
2±0.5
Secondary control voltage (v)
AC&DC:36V 110V 127V 380Vor
can be customized

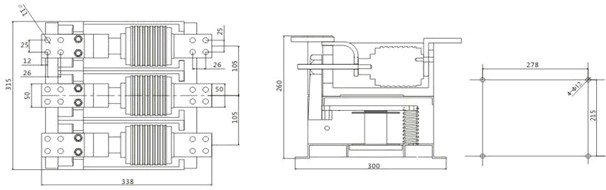

Ouline and Installation Size

dimension


AC Contactor 2000V Vacuum Contactor

AC Contactor 2000V Vacuum Contactor

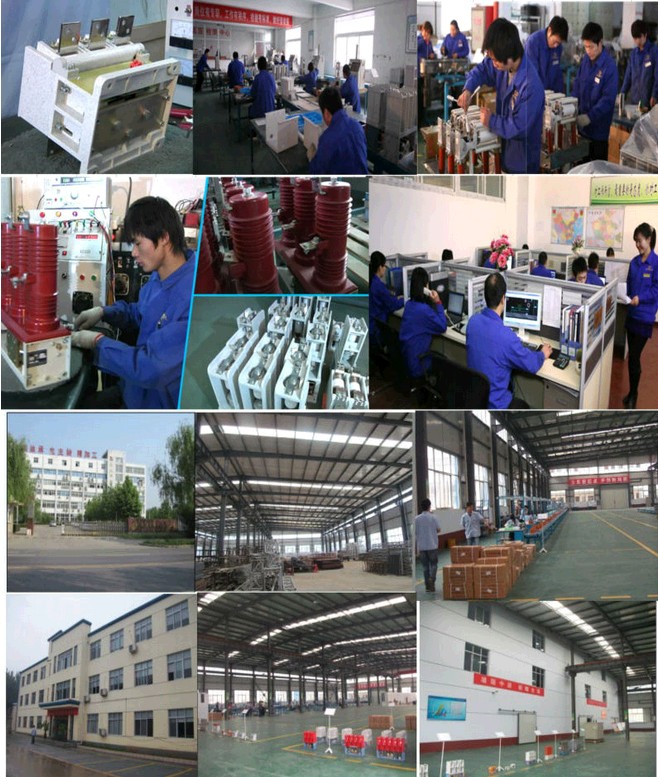

Factory and workshoo views

workshop and factory

Company Profile


logo

Chennuo Electric is a high-tech enterprise, establised in 2004 ,specialized in manufacturing high & low voltage vacuum electric appliance, which merges research and development, production and sales into a single whole. The main products include high & low voltage vacuum contactors, outdoor & indoor high voltage vacuum circuit breakers, high voltage vacuum load switch, hoist sets of electronically controlled equipment, automatic reactive compensation devices, wind and solar energy-saving devices and other products, widely used in coal, electricity, mining, cement, and chemical industry. All these products are deeply trusted by the customer!

In order to ensure that the product quality is stable, the user use it safely,all of our vacuum contactos have had 1000 times institutions running test before leaving our factory.

We accept OEM and small trial orders. Contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.
