• 8 Station Tyre Inflation Device FYD-2014-07-02

8 Station Tyre Inflation Device FYD-2014-07-02

Each station can be operated indepently.

Product Details

Quick Details

Description



1. Technical Data



1.1  Equipment name:6 station tyre inflation device





1.2  Dimension and weight:



  • Overall dimension(length×width×height): 6868×1200×2200
  •
  • Equipmet total weight:3700KG
  •



1.3 Main technical parameters



  • Locking form:Inner-retangular teeth locking
  • Drive method:Motor, cylinder
  • Diameter of apply tyre rim:22.5”—24”
  • Tyre outside diameter :min1000mm  max1300mm
  • Rim width:min160mm   max260mm
  • Motor:0.4KW  380V  50HZ  1400r/min
  • Reducer: 1:5
  • Compressed air pressure:0.8MPa
  • Main electrity:AC380V  50HZ
  • Solenoid valve power:DC24V
  •
  • Control loop:DC24V
  •





 2. Technical Requirement



2.1  Each station can be operated indepently.





2.2  Each station has independent air regulator and pressure gauge.





2.3  Air pressure can be relieved individually in case of malfunction.





2.4  Tyre lifting device lifts the tyre to rim close position, and the lifting height is controlled by sensors. Whenever tyre size is changed, the sensor position should be adjusted accordingly.





2.5  Button box in every rim can be operated with all actions.





2.6 Sound-light indicator alarms automatically when the cycle finished.







3. Configuration Requirement



3.1 PLC: Siemens





3.2  Touch panel: Siemens





3.2  Solenoid valve: SMC





3.4  Approximate Switch: Omron



3.5  Buttons: Schneider made in china



8 Station Tyre Inflation Device FYD-2014-07-02


Company Profile

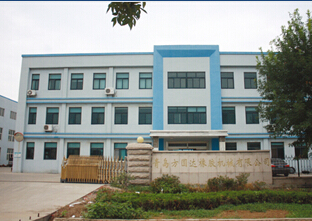

Qingdao Fangyuanda Rubber Machine Co., Ltd. is located in Shandong Province which is the largest and most concentrative tire manufacturing base of China. We are founded in 1990, focusing on the development and trade of tyre vulcanizing machine or tire curing press and tyre mould or tire mold, and devote ourselves to rubber and tire industry. There are over 40 engineers and technicians and over 150 workers in our company.
