  • 66KV power transformer

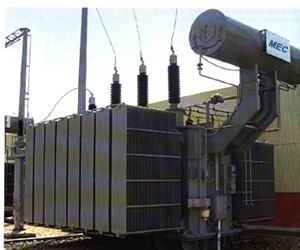

66KV power transformer

The winding has novel structure and its oil passage is reasonable designed. Its newly designed insulation structure helps enhance its mechanical strength and the short circuit withstanding ability ?The oil tank is in two types-fully enclosed type and the type fitted with an oil conservator. Please contact us! Email:

Product Details

Quick Details

Description

Skype:liujingmec
liujing@mec.com.cn

Main Technical Parameters for 66kv level S(F)Z9,10Series for
three-phase two winding non-excitation-tap-changing Power transformer

Rated
Power
(kVA)
High
Voltage
(kVA)
H.V.Tap
Range

Low
Voltage
(kVA)
Connection
Symbol

Short-Circuit
Impedance
(%)
No-Load
Loss
(kW)
On-Load
Loss
(kW)
No-Load
Current
(%)
Weight
(T)
Overall
dimension

9
10
9
10

Untanking weight

Total

L

W

H
6300

63
66
69


±2×2.5%



6.3
6.6
10.5
11




YNd11



9



9.5
8.5
36
34
0.63
17.5
18.4
3800
3800
3900
8000
11.4
10.2
42.8
40.4
0.63
20
20.8
3900
3900
4050
10000
13.5
12.1
50.4
47.6
0.75
22.5
23.2
4080
3950
4200
12500
15.9
14.2
59.9
56.5
0.53
26.5
26.5
4100
4000
4250
16000
19.1
17.1
73.53
69.5
0.49
28.6
28.7
4450
4030
4400
20000
22.6
20.3
89.1
84.2
0.49
33.2
31.9
4500
4100
4450
25000
26.7
23.9
105.3
99.5
0.42
35.2
35
4600
4150
4520
31500
31.8
28.4
126.9
120
0.42
40.2
46.5
4650
4400
4600
40000
38
34
148.5
140.3
0.39
45.7
54.2
4750
4600
4780
50000
44.9
40.1
184.5
174.3
0.39
53.1
63
4900
4650
4820
63000
53.3
47.7
222.3
210
0.39
60.3
69.2
5000
4700
5000

Company Profile

We are a professional player in transformer industry,  our annual total production capacity is about 18,000,000 KVA, our factory covers an area of 370,000 square meters and a building area of 100,000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 220kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have many advanced production and testing facilities which imported from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1,500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
 We have obtained ISO9001 quality management system and ISO14001 environmental management system certifications and in strict accordance with these standards in our routine.
We also obtained the CE certificate, CTQC test report, Nation Standardization Management AAA Certificate, National Measuring System Certificate and others. Many prizes also have been awarded to us in the past years by the relevant national Authority and local government.
Owing to our good reputation on quality and service, our products have been exported to more than 20 overseas countries and regions.
We sincerely hope we can provide you with best products and satisfied service, and you are always warmly welcome to visit us.
