  • 600W Wind Generators

600W Wind Generators

600W wind generators 1. Start in breeze 2.5m/s. 2. High efficient. 3. CE ISO. 4. anticorrosive processing

Product Details

Quick Details Parameter

Place of Origin: : Shanghai, China
Brand Name: : NL
Model Number: : NL-600M
Type: : Wind Power Generator
Name: : 600W wind generators
Leaf number: : 3
Starting Wind Speed: : Breeze
Vibration: : low
Resistance torque: : low
Output capacity: : high
Leaf Material: : Nylon fiber or carbon
Power: : 600W wind power

Description


600W Wind Generators

Products Range: 100W~2mW

(1). Dual, automatic emergency braking system.

(2). Unique Anti-Vibration design.

(3). Waterproofing.

(4). Unique Anti-Vibration design.

(5). Efficient Aero-dynamic design, Compared with the vertical shaft, power utilization rate is greatly improved.

(6). High strength, corrosion resisting aluminium alloy.

(7). Unique permanent magnetic material generator, Small size, light weight, power output is very high.

(8). Low noise level.

structure


600W Small Wind Generator

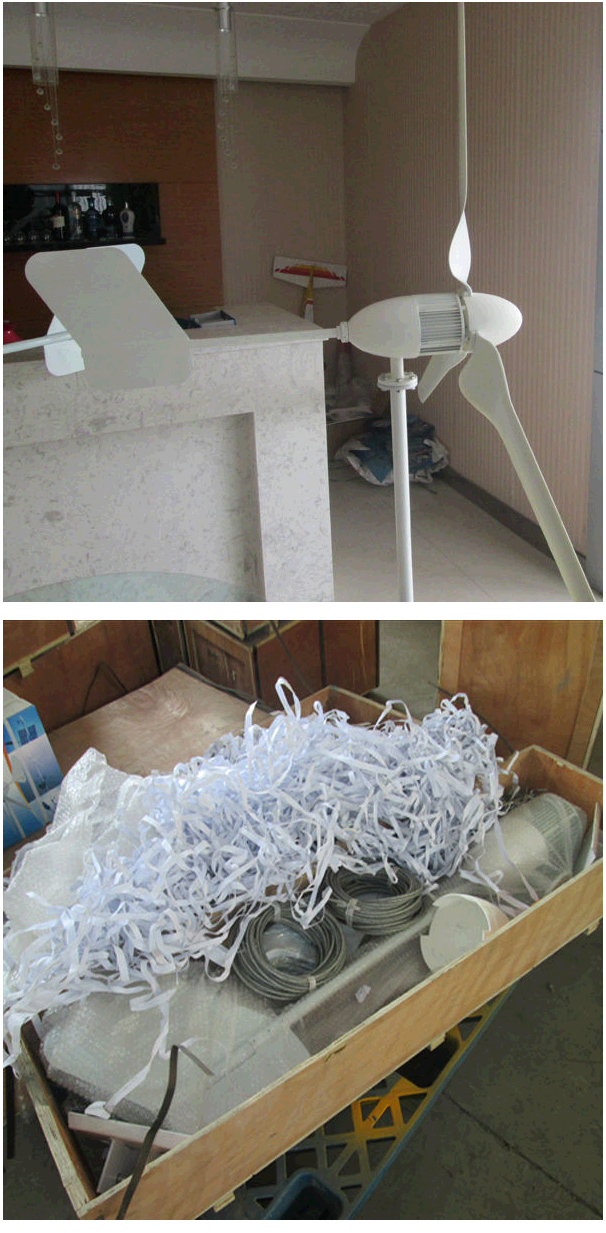

packaging


Blade, blade number : 3 or 5

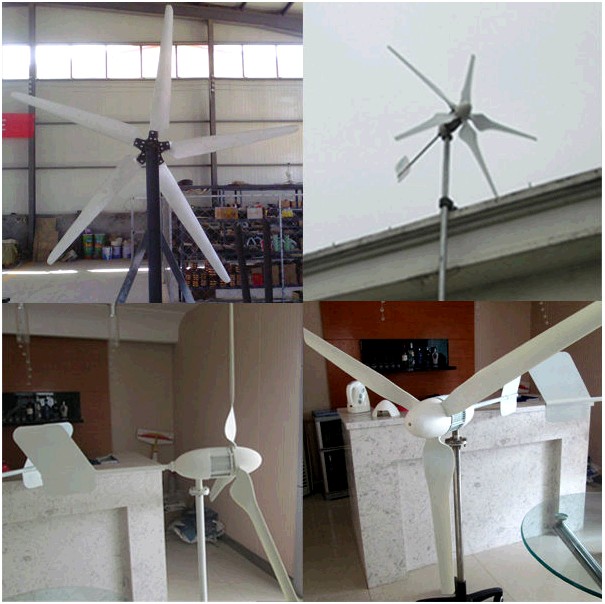

blade

Using new technology for precision injection molding of wind turbine blades,
as well as the aerodynamic design and optimization of structural design, high wind energy utilization coefficient, capacity by automatic flameout protection under strong winds.
Material: nylon fiber or carbon fiber (optional).
Carbon fiber blades, high wind resistance ability, long working life.


Rare earth permanent magnet generator

A. adopt NdFeB which named king of the magnet,high pure copper wire winding,
power generation high efficiency and stability.

B. Special design of stator and rotor, small starting resistance moment, and good heat dissipation.

C. Gearless, direct drive, low speed of rare earth permanent magnet generator,
the operation is simple, safe, and convenient to maintenance.

D.  Die casting aluminum alloy shell, anticorrosive processing, resistance to acid and alkali, salt corrosion.


Technical parameters

Model
300S
400S
600S
Rated power ( W )
300 W
400 W
600 W
Rated voltage ( DCV )
12/24 V
24/48 V
24/48 V
wind wheel diameter
999 mm
1500 mm
1600 mm
Blade material
Fiber glass
Carbon fiber
Carbon fiber
Yaw direction
Clockwise
Clockwise
Clockwise
Started wind
1.0 m/s
2.5 m/s
2.5 m/s
Safety wind
35 m/s
45 m/s
45 m/s
Generator weight
10kg
10kg
10kg
Blade number
6 / 5 / 3
5 / 3
5 / 3
Upwind method
Upwind
Upwind
Upwind


600W Wind Generators

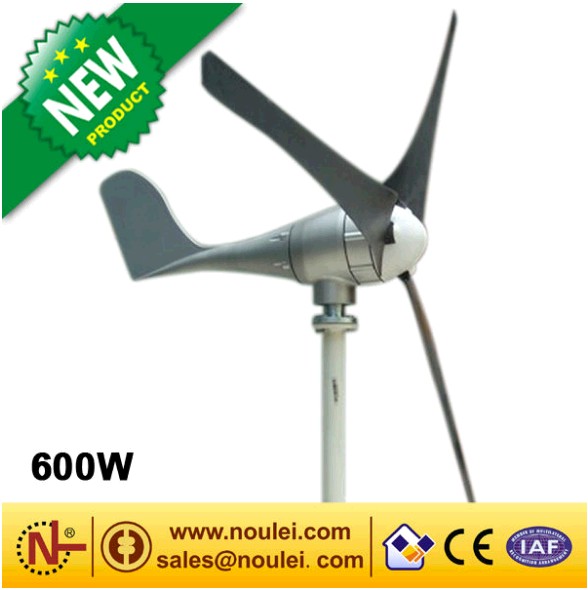

bigger pic
