• 600L Continuous Freezer

600L Continuous Freezer

continuous freezer; The machine is quite applicable for ice cream of different tastes and includes compressore or not. Please contact us! Email:yuyang@mec.com.cn

Product Details

Quick Details

Description

Skype: meczhou

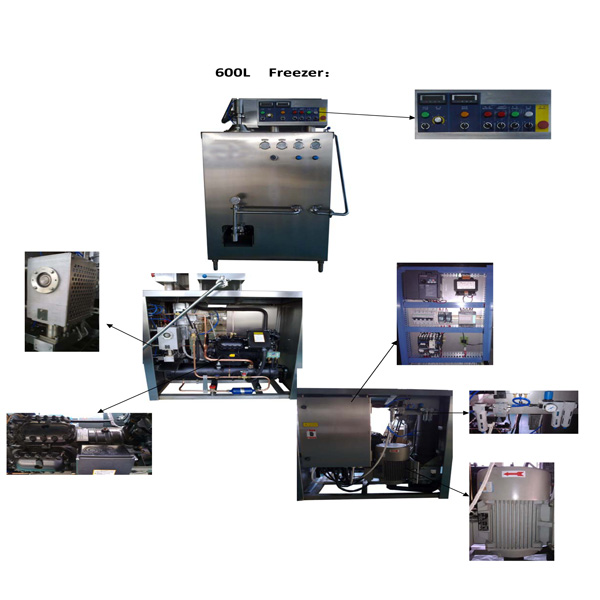

CONTINUOUS FREEZER

The machine is quite applicable for ice cream of different tastes and includes compressore or not.

It adopts single in and sigle out structure for brine circulation and it is fully pneumatic working.

continuous freezer



Technology Data

1

ice cream input Temp

≤+5

2

capacity

200~600L/h

3

Ice cream at overrun

100%

4

Condensing water

3000 L/h

5

Refrigeration

20850KCal/h

6

Type

R22

7

R22 consumed

~20Kg

8

Temp of condenser at evaporating

-35

9

Compressor motor

25HP18.75KW)

10

Motor of ice cream pump

1.5KW

11

Motor of dasher

15KW

12

Air comsumed

1.5m3/h(0.025m3/min)

13

Air pressure

0.7MPa~0.9MPa

14

Ice cream pipe outlet

φ40

15

Ice cream pipe inlet

φ25

16

Size

2030*1100*1670 mm

17

weight

~1500Kg




600L Continuous Freezer

Company Profile

Our company is a professional supplier of ice cream euipment in China. We have established mutual-benificial business relationship with customers all over the world, such as Turkmenistan, Pakistan, Malaysia, Yemen, Sudan, Uganda, and so on.

We can produce all machines related to ice cream industry with high quality and technology, like stick ice cream machine, ice cream filling machine, ice cream extrusion machine, homogenizer, aging tank, continuous freezer, quick freeze tunnel, etc.

We have already got the CE and ISO certificate.
