  • 5kW Wind Turbine Generator

5kW Wind Turbine Generator

5kW Wind Turbine Generator 1. Start in breeze 3.5m/s 2. High efficient output 3. anticorrosive processing 4. CE ISO

Product Details

Quick Details Parameter

Place of Origin: : Shanghai, China
Brand Name: : NL
Model Number: : NL-5KL
Type: : Wind Power Generator
Name: : 5kW Wind Turbine Generator
Starting Wind Speed: : Breeze,3.5m/s
Vibration: : low
Resistance torque: : low
Output capacity: : high
Leaf number: : 3 Leaf
Material: : GFRP strengthening

Description


5kW Wind Turbine Generator

Products Range: 100W~2mW

1. Dual, automatic emergency braking system.

2. Unique Anti-Vibration design.

3. Waterproofing.

4. Unique Anti-Vibration design.

5. Efficient Aero-dynamic design, Compared with the vertical shaft, power utilization rate is greatly improved.

6. High strength, corrosion resisting aluminium alloy.

7. Unique permanent magnetic material generator, Small size, light weight, power output is very high.

8. Low noise level.

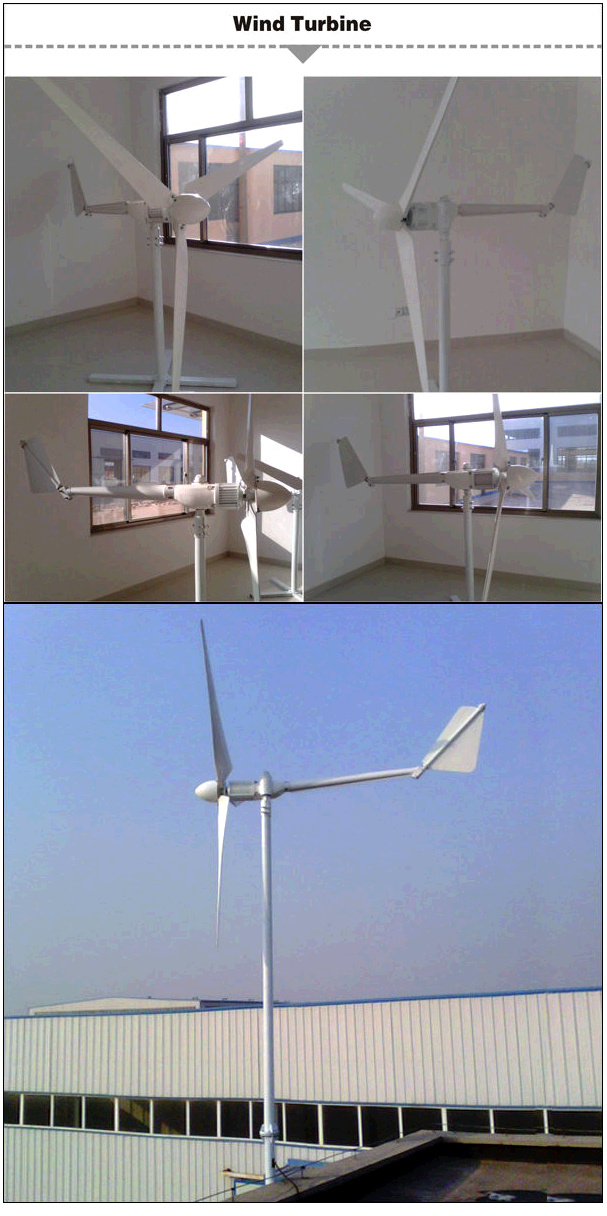

5kW Wind Turbine Generator

5kW Wind Turbine Generator

Wind turbine structure

structure


The generator is therare earth permanent magnet generator.

1. High pure copper wire winding, power generation high efficiency and stability.
2. Special design of stator and rotor, small starting resistance moment, and good heat dissipation.
3. Gearless, direct drive, low speed, the operation is simple, safe, and convenient to maintenance.
4. Die casting aluminum alloy shell, anticorrosive processing, resistance to acid and alkali, salt corrosion.

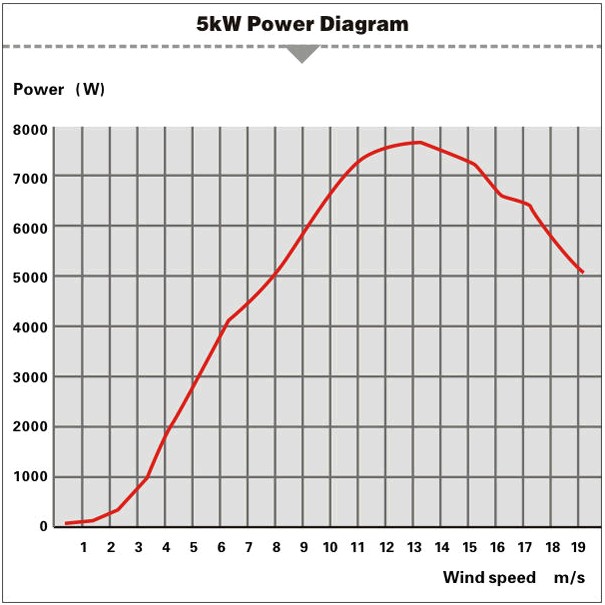

5KW Power Diagram

diagram


Technical parameters

Model
NL-1KL
NL-2KL
NL-3KL
NL-5KL
NL-10KL
NL-20KL
Rated power
1000W
2000W
3000W
5000W
10kW
20kW
Maximum power
1500W
3000W
4800W
7500W
17kW
30kW
Rated power
48V
48V
240V
240V
500V
500V
Started wind
3.5 m/s
3.5 m/s
3.5 m/s
3.5 m/s
3.5m/s
3.5m/s
Rated wind
10 m/s
10 m/s
10 m/s
10 m/s
10 m/s
10 m/s
Rated revolution
400 r/m
370 r/m
300 r/m
260 r/m
200r/m
200r/m
Safety wind
35 m/s
40 m/s
40 m/s
45 m/s
45m/s
45m/s
Host net weight
56 kg
68 kg
135kg
226kg
420kg
1150kg
Size (stator H x stator φx shaft L) mm
185*190*139
200*250*155
220*320*180
285*340*266
320*560*420
520*760*560
Tower height
6 m
6 m
9 m
12 m
18m
20m
Blade number
3 pcs
Blade material
Nylon fiber /GFRP strengthening
Generator
Three-phase ac permanent magnet synchronous generator
Speed adjustment
Automatically adjust the windward Angle
Control System
Electromagnetic / wind round lateralization
Temperature
-40°C-80°C
Lubrication
Lubricating

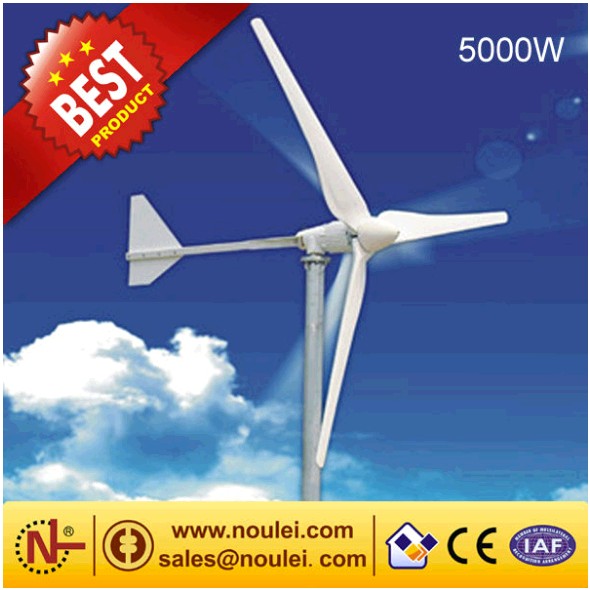

 5kW Wind Turbine Generator
