  • 5S-M5 Vertical Milling Machine

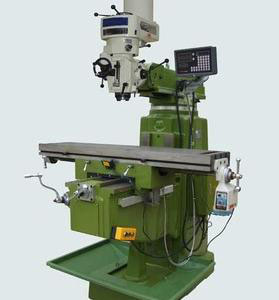

5S-M5 Vertical Milling Machine

1.wide working range 2.suitable for manufacturing of tooling, fixture and die Please contact me:wangxun124@163.com

Product Details

Quick Details

Description

Standard M5 Milling Machine
Item
Parameter
Working table area
305×1372mm
Three Aspects Travel (X,Y,Z)
980×420×380mm
Spindle Travel
127mm
Spindle Mobile Feeds Speed
0.04,0.08,0.15mm
Spindle Taper Type
 NT40
Spindle Speed
10steps 62-3000rpm
Spindle Motor
5HP
Net Weight
1613Kgs
Guideway Shape
Triangle and Square
Extended arm length
600mm
Mobile Feeds Configuration(X,Y,Z)
O -  -
Characteristics
     The machine is of excellent configuration with wide working range and small area requirement. Head swivel angles are 90°left/right and 45°front/back. Ram not only is movable in front and back direction but also can be rotated 360°horizontally to greatly extend the machine’s working range.
     The machine body is made of SC250 Casting with good rigidity and reliability. Spindle is made of Chrome Molybdenum Steel, tempering and carburizing heat treated. Spindle is assembled with precision Ball Bearing that provides wide cutting rang and high precision.
   X, Y and Z axes slideways are laminated with wear resistant material, Turcite-B for easy operation, minimum wear out and long durability.
   Working Table and Slideways are treated with inductive surface hardening and precision ground for maximum wear resistance. Equipped with manual oil lubrication system for concentrative lubrication on Working Table and knee.



Company Profile


Jiangnan Jiahua Import & Export Co. Ltd, is a holding company of Jiangnan Industrial Group(JIG). It is mainly engaged in the sales of self-made products such as new energy equipment (CNG cylinder,LPG cylinder with brand name Jiangnan "Silver Arrow"), CNC machines with brand name Jiangnan"Miraro",milling machine and turret-type milling head with brand name Jiangnan "Silver Arrow"and etc .
