• 5KW On Grid Solar Power System for Household (FD-ON/PSP-5000W)

5KW On Grid Solar Power System for Household (FD-ON/PSP-5000W)

This is an off-grid energy system which uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power.

Product Details

Quick Details

Description

Off gird solar power system for household

Model: FD-OFF/PSP-4500W





Solar power system working princile:

1. This is an off-grid energy system which uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power.

2. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply.

3. Meanwhile, the system can charge the batteries with grid power until batteries are fully charged. Then the system will switch back to battery power supply



On Gird Solar power system feature:

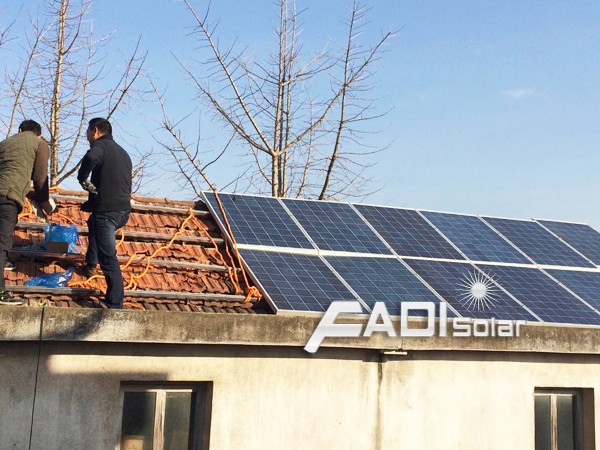

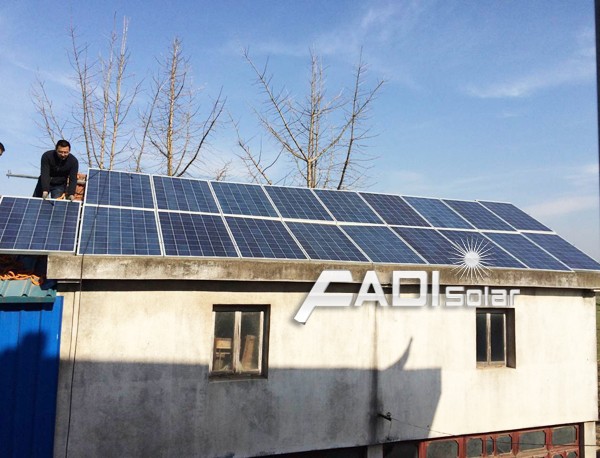

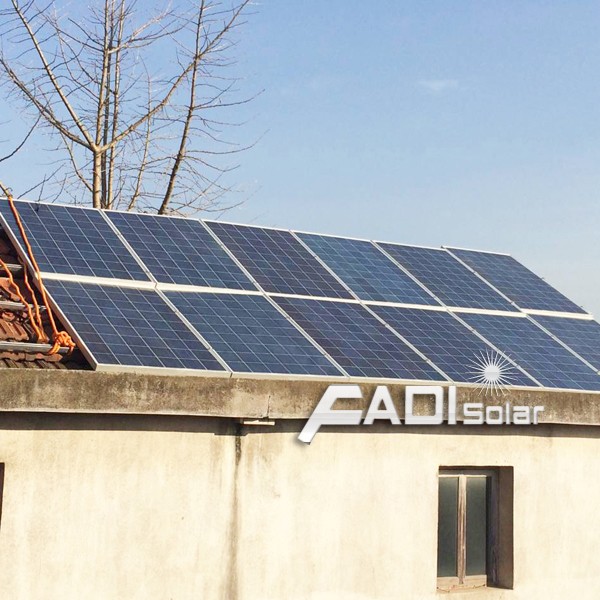

1.On Grid Solar Power System is composed of solar panels, inverter, solar panel mounting racks, and other accessories required for a complete system.
2.The solar panels generate electricity at daytime and provide power from DC to AC to the appliances directly through the inverter.
5.The inverter gives an intelligent control of whole system process and provides various protections.



On Grid Solar power system applications:

1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, venue, stadium and so on

4. Power station, field operation and some huge engineer construction



On Grid Solar power system details:

Item No

FD-ON/PSP-5000W

System Basic Information

Solar Panel Rated Output Power:

5.0KW

Suitable for Max Daily Power Consumption:

18KWH

Rated Output AC Capacity:

5.0KW

Solar Panel

Type

Poly Crystalline Silicon PV Module

Max Power:

250W*20pcs

Vmp:

30.6V

Size:

1637×992×40mm

Weight:

18.5kg/pc

25 years power output guarantee

(Note: 10pcs panels in series as a string,2 strings in parallel)

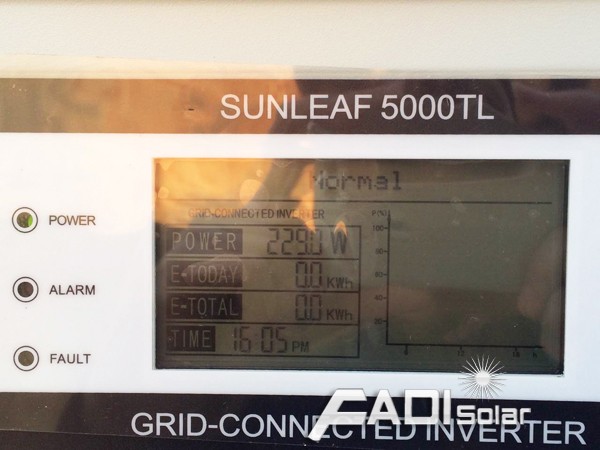

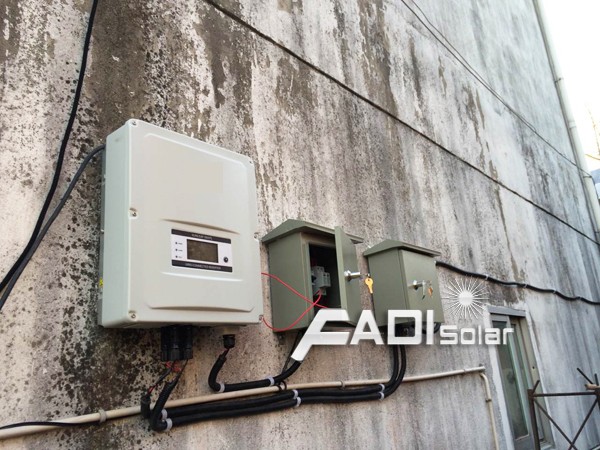

Inverter (On Grid)

MPPT Voltage range

125-500V

Max DC Power

6500W

Nominal DC Power(W)

5500W

Starting voltage

120V

Max DC Current

11A

Number of Connectors

2

Number of MPPTs

2 (can parallel)

Norminal AC Power

5KW

Max AC Power

5KW

Max AC Current

22.8A

Norminal AC Output

50/60Hz:230ac

AC Output range

45~55Hz/55~65Hz; 180~270Vac

THDi

<1.5%

Power Factor

0.8 leading~0.8lagging

Grid Connector

Single Phase

Type

Off grid type, automatic power tracking,

Efficiency

97.6%

Dimensions

347*432*145mm

Weight

15KGS

Mounting

Wall bracket

Ambient temperature range

-25~60°C

Relative humidity

0~95%

Max. operating altitude

4000m(>3000m derating)

Protection degree

IP65

Night power consumption(W)

<1

Noise emision(dB)

<25

Display

LCD

Communication

USB2.0; RS485 or WiFi

Warranty

5years

Solar panel rack

Ground or flat type mounting rack, including complete fittings; galvanized steel material

(Other types of racks can be customized as per client's requirement)

Cables

10mm2 size cable

Certifications

CE RoHS
