  • 5.0T - 7.0T Diesel Forklift

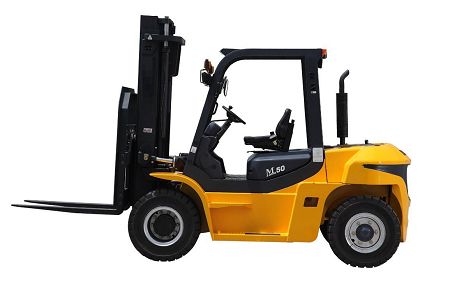

5.0T - 7.0T Diesel Forklift

Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low torsional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving.

Product Details

Quick Details

Description

Model



FD50T

FD60T

FD70T

Power Type



Diesel

Rated Capacity

kg

5000

6000

7000

Load Centre

mm

600

Lift height

mm

3000

Free Lift Height

mm

195

200

205

Fork size

LxWxT

mm

1220x150x55

1220x150x60

1220x150x65

Mast tilt angle

F/R

Deg

6/12

Rear Overhang

mm

600

675

740

Ground clearance(Bottom of mast)

mm

200

Overall demensions

Length to face of fork (Without fork)

mm

3440

3515

3580

Overall width

mm

1995

Mast lowered height

mm

2500

2500

2625

Mast extended height (With backrest)

mm

4420

Overhead guard height

mm

2450

Turning radius (outside)

mm

3250

3300

3370

Min.right angle stacking aisle width

mm

2960

3000

3040

(add load length and clearance)

Self weight

kg

8080

8740

9450

Transmission

Type



POWERSHIFT

Stage

FWD/RVS



2/2

Operating pressure (For attachments)

MPa

19.5



1. Three alternatives of engine: Imported Isuzu 6BG1,MITSUBISHI S6ST engine and domestic Chaochai engine. Economical but powerful enough.
2. Transmission: with TCM technology.
3. Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low torsional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving.
4. Dynamic braking.

5.0T - 7.0T Diesel Forklift

Company Profile

Shintool Machinery Co., Limited, is located in Hangzhou, the export base for Material Handling Equipments and forklift parts in China.

As a warehouse owner always have a headache that choosing some warehouse equipments from many chinese manufactories. Or as a importer want to import a full container products, but the products are spread in different cities. They want a professional export team to supply ONE-STOP-SHOP service to solve their problems.

Our professional SHINTOOL sales team have more than 6 years experience on this line of business. If you want to buy the warehouse equipments like forklifts, electric stackers, tow truck, container ramps, lifting tables, mobile lifting platforms and so on. We can supply you the quality products with in competitive price. All of the machine manufactories are near to Shanghai sea port and Ningbo seaport.

We can also supply the ONE-STOP-SHOP service for helping the buyer to collect full container products (which spread in different cities) and make one Bill of lading export solution. Our reliable cooperated export agent have warehouses in Ningbo and Shanghai sea port. With highly experienced team, they can clear the chinese custom smoothly and efficiently.

We can also supply the chinese brand forklift parts purchase solution

During these years, Chinese brand forklifts have a good market around the world. After years' developing, the forklift after-sales market developed. Chinese forklift have many brands, each brand has their own parts no.s. The professional forklift parts dealers or the sub-dealers want a professional chinese forklift parts supplier who can supply the correct chinese brand forklift parts within competitive price.

Our professional sales team can also supply the ONE-STOP-SHOP service on the line of Chinese brand forklift parts, with well known about this forklift industry, our main servicing chinese forklift brands including: HELI, HC, TCM, EP, Maximal, BAOLI, Liugong, Shangli, UN and so on. We can also supplying the Chinese OEM made Japanese engine parts, such us ISUZU, YANMAR, NISSAN and so on.
