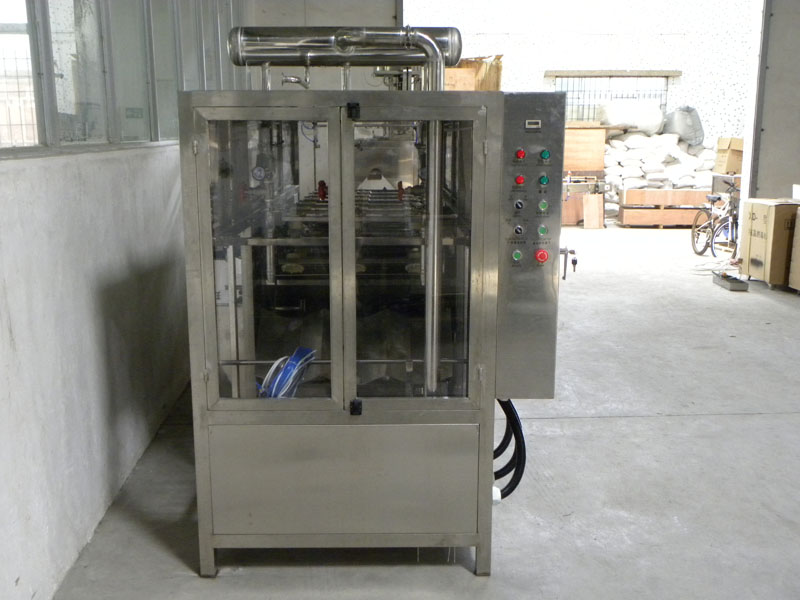

450BPH 5 Gallon Automatic Water Filling Machine (Three Rows Six Stations)

This machine is a completely new design absorbing technical basis of Germany,Italy and other similar equipment,special for filling pure water,distilled water,mineral...ect sterile liquid.This machine macthes with rinsing,filling,caping and finished products unload function,which is ideal equipment for starting a water factory.

Product Details

Quick Details

Description

 5 gallon machine/5 gallons filling machine/5 gallon barrel filling machine,GMC,BV approved .Imported electrical part,Stable



Specifications Of 450BPH 5 Gallon Automatic Water Filling Machine (Three Rows Six Stations)



Item

Parameter

Source



Bottle Washing Pump

BLC70/ 750*4 pieces

GUANGDONG LINGXIAO



Filling Pump

CHL16-30*1 set

CNP



Capping Gear Motor

RV30/1:30 250W*1 set

Haitec



Cap Sorter

YN90-120/AC220V/50Hz *1 set

LINIX



Stainless Electric-magnetic Valves



ZCS-15L*6 pieces

CHONGQING DONGFANG



ZCS-25L*3 pieces



Plate/ pipe

SUS304



Capacity

450 bottles per hour



Air compressor configuration requirements(self-made)

Air Displacement 0.4     Working Pressure0.8Mp



Overall Dimensions

Main body4300×1200×1650mm)



Packing Dimensions

Main body4500×1300×1800mm)



Stations

Power:8.5KW



Three Rows Six Stations:                                                            The First Station: Inner Washed by Hot Alkaline Water(heatable)

The Second Station: Inner Washed by Clean Water

The Third and Forth Station: Inner Washed by Potions

The Fifth and Sixth Station: Inner Washed by Pure Water
