• 3KW Diesel Generator Single Phase

3KW Diesel Generator Single Phase

1. 3KW Diesel Generator Single Phase 2. Reliable and durable 3. Low fault because of no ignition 4. High efficiency

Product Details

Quick Details Parameter

Place of Origin: : Zhejiang, China
Brand Name: : HUAHE
Model Number: : 3GF
Output Type: : AC Single Phase
Speed: : 3600rpm
Frequency: : 50Hz
Rated Power: : 3KW
Rated Voltage: : 220V
Rated Current: : 7.4A
Color: : Blue

Description


3KW Diesel Generator Single Phase

Detailed information of this generator

Model
Economical type
3GF






Generator





Type
Revolving field type 2 pole generator
Frequency (Hz)
50
60
Cont. Output (KW)
2.8
3.3
Voltage (A.C)(V)
230
240 (120)
Current (A.C)(A)
12.2
13.8 (27.5)
Engine speed (r/min)
3000
3600
Phase
Single phase
Power factor (COSΦ)
1
Excitation system
Controlled constant self-excitation
D.C output V/A
12V/8.3A
Operation capacity
12 hour constant operation
Coupling pattern
Straight shaft coupling
Model
170FG





Engine



Type
Direct injection vertical, 4-cycle, air-cooled diesel engine
Displacement cc (cu.in)
296 (18.06)
Max. output (KW/rpm)
4.4
4.6
Cont. output (KW/rpm)
4
4.4
Starting system
Recoil start/ Electric start
Governor system
Centrifugal weight system
Fuel
Diesel light fuel (BS-AL or equivalent)
Fuel tank capacity (L)
12.5
Lube oil capacity (L)
0.8
Bore×Stroke
78×62
Protection system
Low oil, warning system/Stop device (not for L-series)

Unit

Noise level at 7m dB (A)
82
Dimension (L×W×H) (mm)
680×470×560
Dry weight (kg)
76

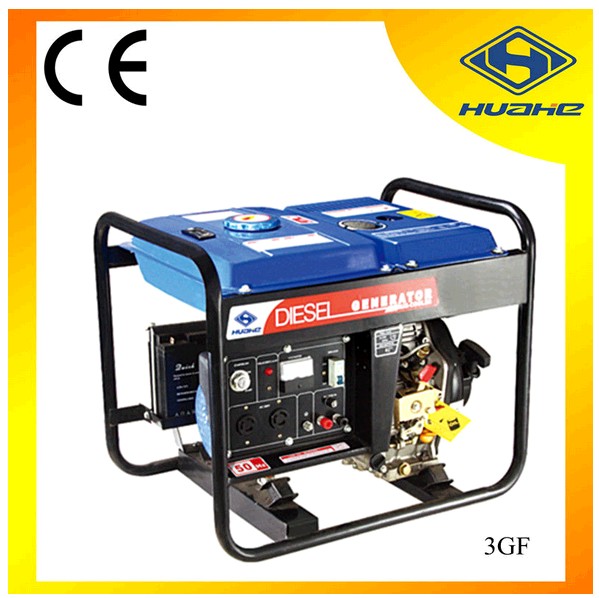

3KW Diesel Generator Single Phase

bigger pic

Company Profile


longger logo

Established in 2001, Huahe Heavy Industries Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of Generators, Water Pumps, High Pressure Washers, Engines, Vibrators and Forklift and so on.

We are located in Taizhou City, Zhejiang Province, with convenient transportation access. All of our products comply with International quality standards and are greatly appreciated in a variety of different markets throughout the world.

Covering an area of 60000 square meters, we now have over 500 employees, boast an annual sales figure that exceeds USD50,000,000 and currently export 99% of our production worldwide.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO 9001, CE, GS, RoSH certificates.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching
Europe, South America, North America, Middle East, Asia.

In addition, our experienced R&D team actively expands our product range to meet changing market trends and we welcome OEM orders.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

main pic
