3D Wire Mesh Panel Machine

3D Wire Mesh Panel Machine is the main machine of the production line, which adopts PLC control system, air cylinder or step motor as drive.

Product Details

Quick Details

Description

Main parameter of 3D panel machine:

Rated electrical power

75KVA

Input voltage

AV380V  50HZ

Air source allocation

3 Cubic meter/MIN   0.6MPa

Applicable range

Core panel thickness

30mm-100mm

Truss wire configuration

Single or double sided mesh ,different densities of truss wires

production standard

Standard
Sandwich  panel

Length

3000mm

Width

1220mm

Nonstandard sandwich panel

The length according to your requirement
≤4500mm

material characteristic

Welded wire material

1.5mm-2.5mm cold-drawing low-carbon steel wire

Core panel material

EPS board & XPS board

Gridding space of mesh

   50mm*52mm

product efficiency

seeing the attached table

Lack welding rate

≤5%

Welding strength

(single point)≥330N

Overall dimension

Length

13500mm

Width

1800mm





Height

1700mm

Weight

4000kg

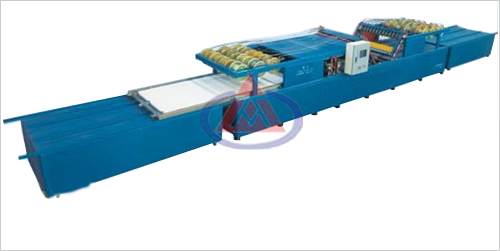

3D Wire Mesh Panel Machine is the main machine of the production line, which adopts PLC control system, air cylinder or step motor as drive. The machine can insert, cut, and control the position of the wire mesh and the EPS boards automatically to complete the production of the 3D panel.

3D Wire Mesh Panel Machine

This production line is of high automatic manufacturing level, productive efficiency, and low lack welding rate, strong welding pressure and even welding strength. The finished products (3D panels) are in good quality and cost low.
We can meet customers' special requirements.

Company Profile

Anping Wanzhong Wire Mesh Products Co., Ltd. is specialized in producing reinforcing construction mesh welding machine, breeding mesh welding machine, steel wire mesh welding machine, wire mesh fence welding machine, automatic steel wire mesh welding machine, 3D wire mesh panel machine, cattle fence machine, chain link mesh machine, welded wire mesh machine and so on.
Our machines are mainly used in the fence for highway, railway, airport, garden, hardware, wire mesh for construction, etc.
Our company has advanced production equipment, first-class technologies and a complete quality management system. With good quality, reasonable prices and excellent services, we have exported our goods to the USA, Mexico, New Zealand, the Middle East, Italy, Turkey, Southeast Asia, Singapore and so on.
Our after-sales service team provides comprehensive support and assistance for WANZHONG's customers worldwide, during both the installation and commissioning periods, as well during the entire service life of our products. Highly qualified technicians are available to make service visits to customers and carry out maintenance.
Spare parts are available, and can be purchased, for all equipment supplied by WANZHONG. And Wanzhong will give advice and provide assistance in handling spare parts.
We would like to cooperate with business friends from home and abroad. For more information, please feel free to contact us.
