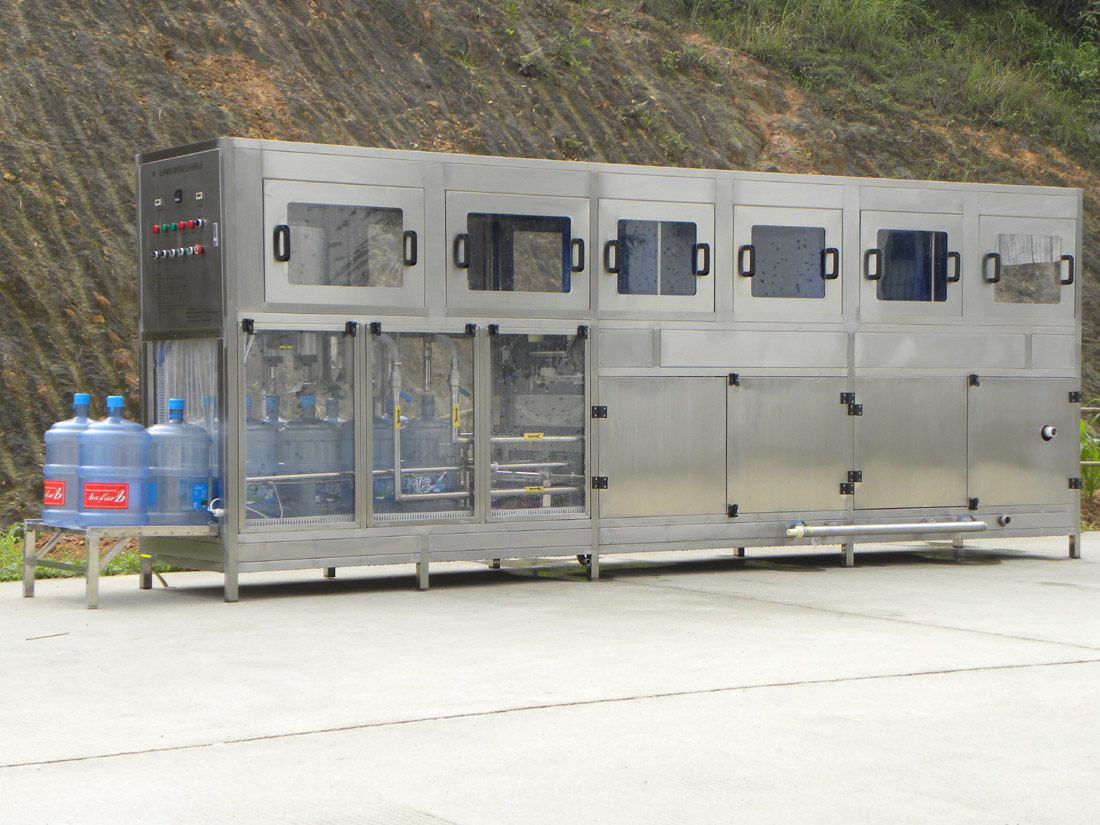

300BPH 5 gallon water filling machine

This machine is a completely new design absorbing technical basis of Germany,Italy and other similar equipment,special for filling pure water,distilled water,mineral...ect sterile liquid.This machine macthes with rising,filling,caping and finished products unload function,which is ideal equipment for starting a water factory.



Product Details

Quick Details

Description

 300BPH water filling machine special for ??filling pure water,distilled water,mineral water...ect sterile liquid.And this machine matches with rinsing,filling,capping and finished products unload function.




Specification of 300BPH 5 gallon water filling machine

Voltage

AC380V50Hz

Power

7500W(Heating tube 4000W)

Working pressure

0.7Mpa

Air displacement

≥ 0.3 m3/min

Filling Capacity

300 bottles per hour

Bottle Spec

270*490*56mm

Plate/Pipe

SUS304

Overall Dimesion

4125*800*1520mm

Certificate

CE


5 Gallon Bottle Filling Machine



1)3 and 5 gallons bottle filling machine
2)Auto washing,filling and capping
3)Stainless steel material, outer waterproof



Features

1) bottling machine With capacity of 300 bottles per hour (18.9L bottle)
2) 5 gallons bottle washing, filling and capping machine controlled by PLC
3) Conveyor with motor, bottle loading and unloading system
4) Two lines, 7 washing steps with hot detergent, hot water, and pure water

5) Washing bottle inside and outside
6) PC & PET bottles available
7) Imported electrical parts and cylinders

8) Stainless steel 304, imported famous electrical appliances

9) Machine size: 3800*800*1700(mm)
