• 3.6KV Vacuum Contactor Motor Magnetic Contactor

3.6KV Vacuum Contactor Motor Magnetic Contactor

motor magnetic contactor ISO9001-2000 Certificated Very professional factory

Product Details

Quick Details Parameter

Place of Origin: : Henan, China
Brand Name: : CHENNUO
Model Number: : CKG3
Electricity Type: : AC
Number of Pole: : 3
Phase: : 3
Main Circuit Rating Voltage: : 380V
Main Circuit Rating Current: : 160A-1600A
Rated Range: : 160A-1600A
Rated Voltage: : 3.6/7.2 KV

Description


3.6KV Vacuum Contactor Motor Magnetic Contactor

Detail description

This series of vacuum contactors main used for AC 50-60hz, main circuit rated voltage 3.6kv below the rated current from 160A-1600A power network systems for remote making and breaking and frequent starting and control of AC motors, transformers and capacitor banks and other occasions.

Main Tech-Parameter

Model Tech parameter
160/3.6KV
250/3.6KV
400/3.6KV
630/3.6KV
800/3.6KV
Main circuit rated voltage (KV)
3.6
3.6
3.6
3.6
3.6
Main circuit rated current (A)
160
250
400
630
800
Main circuit making capacity
(A/100times)
1600
2500
4000
6300
8000
Main circuit break-make
ability (A/25times)
1280
2000
3200
5000
6000
Maximum break ability (A/3times)
3200
4000
4500
6300
8000
Mechanical life (times)
100 0000
100 0000
100 0000
100 0000
100 0000
Electricity life AC3 (times)
25 0000
25 0000
25 0000
25 0000
25 0000
Engineering lock life (times)
10 0000
10 0000
10 0000
10 0000
10 0000
Power-frequency withstand voltage
for main circuit(fracture)(kv)
18
18
18
18
18
Phase-phase phase -to current withstand voltage(KV)
23
23
23
23
23
Rated operate frequency (times/h)
300
300
300
300
300
Engineering lock operate frequency (times/h)
30
30
30
30
30
Terminal pressure(N)
>200
>200
>200
>200
>200
Clearance between open contacts (mm)
4±0.5
4±0.5
4±0.5
4±0.5
4±0.5
Over travel (mm)
1.5±0.5
1.5±0.5
1.5±0.5
1.5±0.5
1.5±0.5
Main circuit electric resistance(   μΩ )
≤200
≤200
≤200
≤200
≤200
Secondary control voltage (v)

AC&DC:110 220 380or can be customized

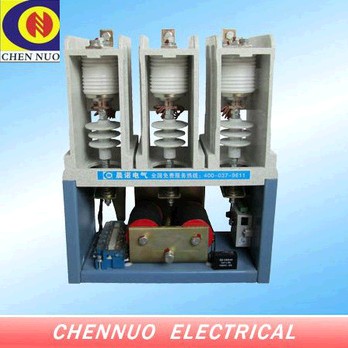

3.6KV Vacuum Contactor Motor Magnetic Contactor

3.6KV Vacuum Contactor Motor Magnetic Contactor

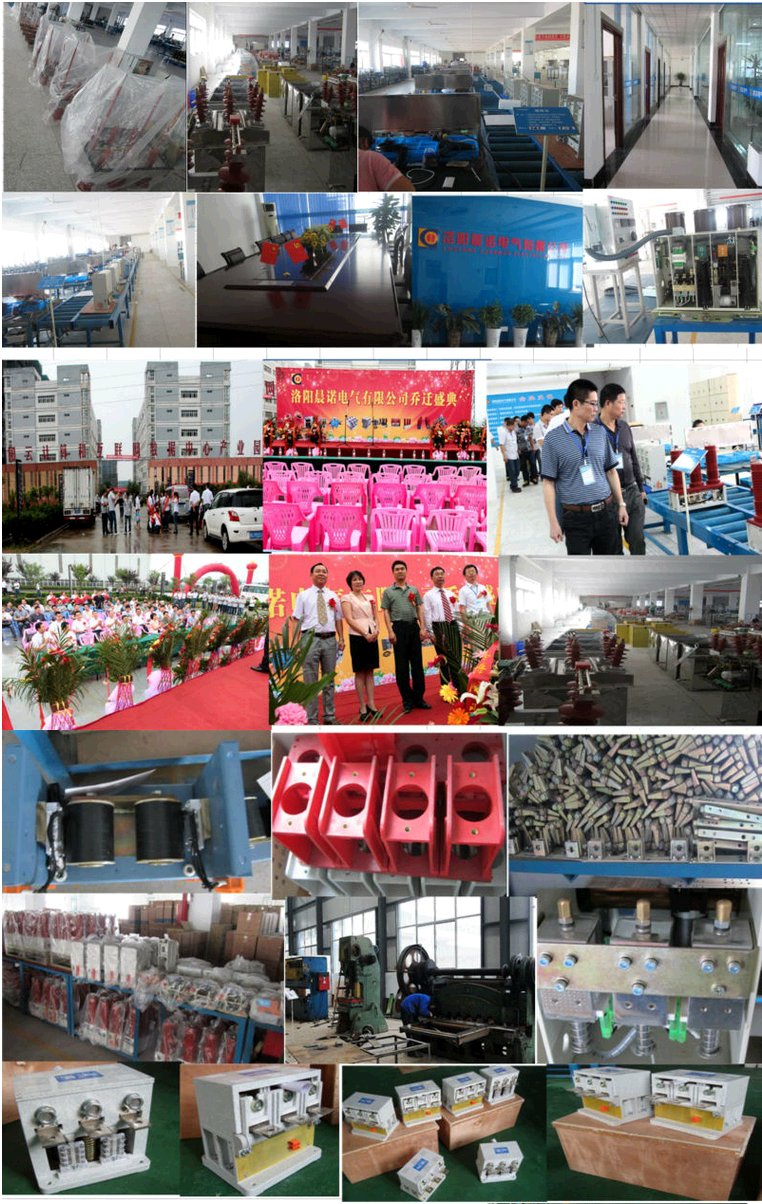

Factory views

Factory views

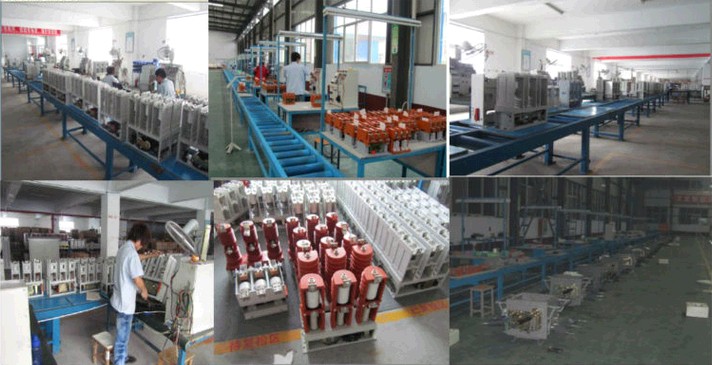

Workshop

workshop

Company Profile


logo

Chennuo Electric is a high-tech enterprise, establised in 2004 ,specialized in manufacturing high & low voltage vacuum electric appliance, which merges research and development, production and sales into a single whole. The main products include high & low voltage vacuum contactors, outdoor & indoor high voltage vacuum circuit breakers, high voltage vacuum load switch, hoist sets of electronically controlled equipment, automatic reactive compensation devices, wind and solar energy-saving devices and other products, widely used in coal, electricity, mining, cement, and chemical industry. All these products are deeply trusted by the customer!

In order to ensure that the product quality is stable, the user use it safely,all of our vacuum contactos have had 1000 times institutions running test before leaving our factory.

We accept OEM and small trial orders. Contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.
