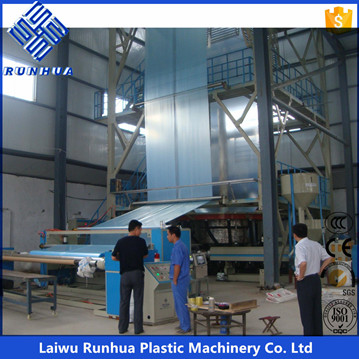

3 layer greenhouse film blowing machine

Greenhouse film blowing machine are mainly be used to produce greenhouse film. 3-layer greenhouse film blowing machine has been widely used in the world. The greenhouse film produced by this machine can has some good characters, such as anti-UV, non-droplet, anti-fog, high light transmittance etc. So this machine is the most suitable for producing greenhouse film.

Laiwu Runhua Plastic Machinery Co., Ltd is professinal film blowing machine manufacturer. Our engineer has 30 years experience in blown film field and we have 7 years exported experience. Our machine's good quality has been proved by China market. In the top 10 PO greenhouse film best sellers, there are eight sellers bought and use our machine. We can put 7 extruders for one machine, our film width can reach 22m.



Product Details

Quick Details

Description

3 layer 8m agricultural greenhouse polyethylene film making machine



Product overview
film blowing machines mmexport1447897022090



3FM(L) Agriculture/Geomembrane Blown Film Lines have been designed and manufactured on the basis of introducing and absorbing the key technology from the western world. They can process many kinds of resins, such as LLDPE,LDPE,EVA,mPE,HDPE and so on, then give the film different characters----- anti-UV, anti-dropping, anti-fog etc.





We are professional greenhouse film blowing manufacturer, have 7 years exported experience and our greenhouse film machine have been exported to many countries-----Iran, Russian, Kazakhstan, Nigeria, Korea etc........If you want to know more, please feel free to contact us.

Technical parameters



The chart below is a breif introdunction of one machine, all the parameters can be changed as customers' request.

Type

3FM2800

3FM3500

3FM4000

3FM4500

3FM5000

3FM5500

Max. Width

(mm)

8000

12000

14000

16000

18000

20000

Film thickness

(mm)

0.06~0.15

Layer of laminating

Tripe-layer

Raw material

LDPE,LLDPE,EVA,mPE

Max. Output

(kg/h)

600

1000

1500

1800

2000

2300

Extruder

90/30x3

120/30x2

135/30x1

150/30x1

135/30x2

150/30x2

180/30x1

180/30x3

180/30x2

200/30x1

Driving power

(kw)

75x3

132x2

+160

250

+160x2

250x2

+280

280x3

280x2

+315

Diameter of die lip

(kw)

1000

1450

1800

2000

2200

2400

Type of air ring

Double-outlet structure

Haul-off height

(mm)

17500

21000

24000

26000

28000

30000

wind-up speed (m/min)

4~40

Layflat mode

Side gusset

Wind-up method

Two-station center wind-up unit



Total power(kw)

700

900

1300

1450

1550

1700

Overall dimension(m)

16x9x18

18x12x22

19x11x25

20x13x27

20x15x29

22x22x31





Details Image

 Our factory maintains any tiny details, our machine are not only equipment, but also could be called artwork.

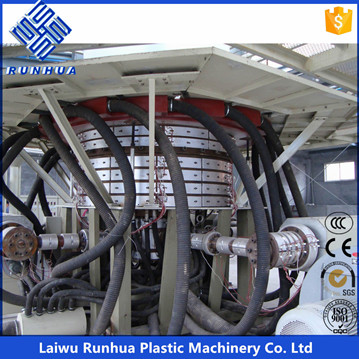

Extruder and die

extruder and die.jpg

Traction device

traction device.jpg

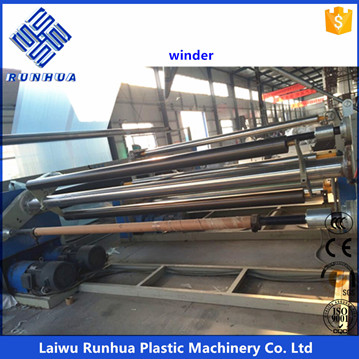

Fold and winding device

winder

Finished product (high light transparence)

finished product1.jpg



Application

 Grape greenhouse film, vegetable greenhouse film, straw berry greenhouse film, flower greenhouse film, etc.

  PE film, EVA film, PO film, MPE film, etc.application

Why choose us?

Why choose us?

The first reason is good quality, second good quality, third still good quality



We are professional in manufacturing agriculture film blowing machine, most of PO greenhouse film blowing machine in China are produced by us.



In the top 10 PO film seller, there are 8 sellers use our machine to produce the film.



We more than once won the bid of PetroChina, Sinopec, the provincial agriculture bureau.



1 year warranty for whole machine.



How could we reach this high level?

Focus.

We focus on film blowing machine, especially in agriculture film blowing machine, that's why our machine is the best greenhouse film blowing machine.



It is no exaggeration to say our agricultural film blowing machine is most advanced in China and also in the lead of the world.

Packaging & Shipping


Company information

 Laiwu Runhua Plastic Machinery Co., Ltd is a high technology enterprise which collects departments of Reserach& Development, Production, Sales and Service. We are specialized in plastic extruder, drawing machine, film blowing machine. Our engineers and experts have more than 20 years experiences.

Main products: Agriculture film machine, Geomembrane film machine, Packing film machine, Plastic wire drawing machine.

Our machine can prodcuce various plastic wires, plastic films. The max. width can reach 22 meters.  Our machine could adopts 1-7 extruders ,can produce monolayer film and multi-layer film,can meet various needs.

Our motto: Quality comes first, Customer is the upermost






Company Profile

 Laiwu Runhua Plastic Machinery Co., Ltd is professinoal film blowing machine maufacturer. Our engineer has 30 years experience in film blowing field and we have 7 years exported experience. We focus on film blowing field for many years, so we have various of film blowin machine.

Our machine's quality has been proved by China market, in the top 10 greenhouse film best sellers, there are  8 sellers use our machine.
We can put 7 extruders for one machine, the width of the film produced by our machine can reach 22m, please feel free to contact us.

Our motto: Quality is first, customer is uppermost.
