  • 220V Electrical DC Motor

220V Electrical DC Motor

1) CE, ISO, SONCAP, SGS, VOC, etc 2) 2 year warranty 3) 100% copper wire 4) Power: 0.06KW-315KW 5) Free spare parts

Product Details

Quick Details Parameter

Brand Name: : LANDTOP
Model Number: : Y, Y2, MS, YC, YCL, YL, JY, ML
Type: : Induction Motor
Frequency: : 50HZ, 60HZ, 50HZ/60HZ
Output Power: : 0.06KW-315KW
Protect Feature: : Totally Enclosed
Phase: : Three-phase
Certification: : CCC,CE,ISO9001, SONCAP, SGS
AC Voltage: : 208-230 / 240 V
Place of Origin: : Fujian, China
Efficiency: : IE 1
Warranty: : 2 year
Insulation class: : Class B or F
Protection class: : IP44, IP54, IP55
Cooling method: : IC0141
Housing: : Cast iron, Aluminum
Speed: : 2, 4, 6, 8, 10 poles
Function: : Driving
Output: : 100% output
Winding: : 100% copper wire
Color: : Optional

Description


220V Electrical DC Motor

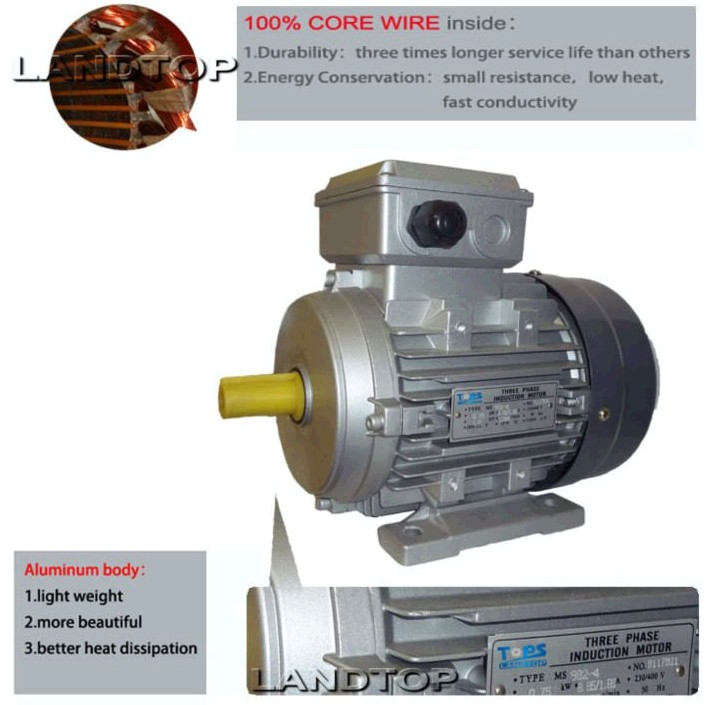

Product Detail

prduct detail

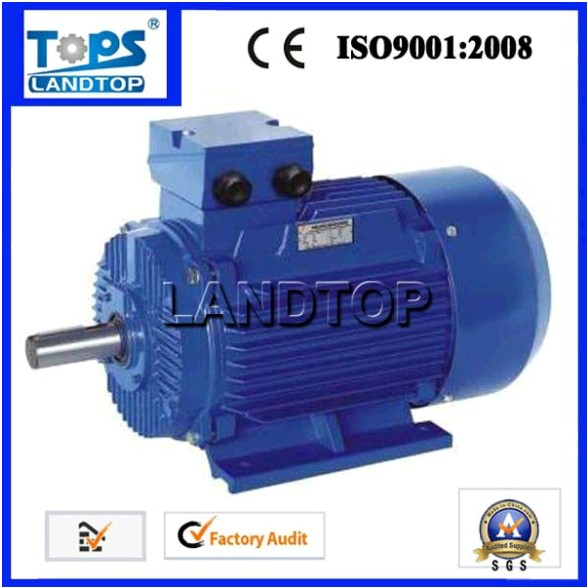

220V Electrical DC Motor

bigger pic


Operating Conditions:

 Altitude
≤1000m
Rated voltage
380V, 400V, 460V, 600V, 690V
110V, 115V, 120V, 220V, 230V, 240V
Rated frequency
50HZ/60HZ, 50HZ, 60HZ
Duty/Rating
Continuous(S1)
Insulation class
Class B, F
Protection class
IP55, IP54, IP44
Cooling method
IC0141

Brief Introduction:

1) Y & Y2 series motor is totally enclosed and fan cooled 3 phase squirrel cage induction motor. It is newly designed in conformity with the relevant rules of IEC&DIN42673 standards. Y connection for motor of 3kw and below. Delta connection for 4kw and above.

2) YC, YCL series heavy-duty 1 phase motors are totally enclosed fan cooling type.  It is cast iron housing high starting torque motors.

3) YL series 1 phase cast iron housing dual capacitor induction motor are adopted modern technology, it has higher starting torque and higher efficiency.

4) JY series single phase capacitor start induction motor is suitable for any places where a larger starting torque and the starting current to be limited.  This series motors have three frame sizes, 09, 1 and 2 of totally enclosed fan cooled type. The frame is cast iron.

5) MS series motor which adopting the latest design and high quality material is conformed to the IEC Standard. The efficiency of motor meets Eff2 standard in Europe and Eff1 standard if request. The motor with removable feet is made of aluminum alloy die casting. User could mount it with various mounting type. The housing is aluminum.

6) ML, MY, MC series single phase aluminum housing induction motor conforms to the IEC standard. The motor is with removable feet.  User can fit according to their needs.

Note:

The voltage and frequency could be made according to your request. If you have any requirements, please contact us.

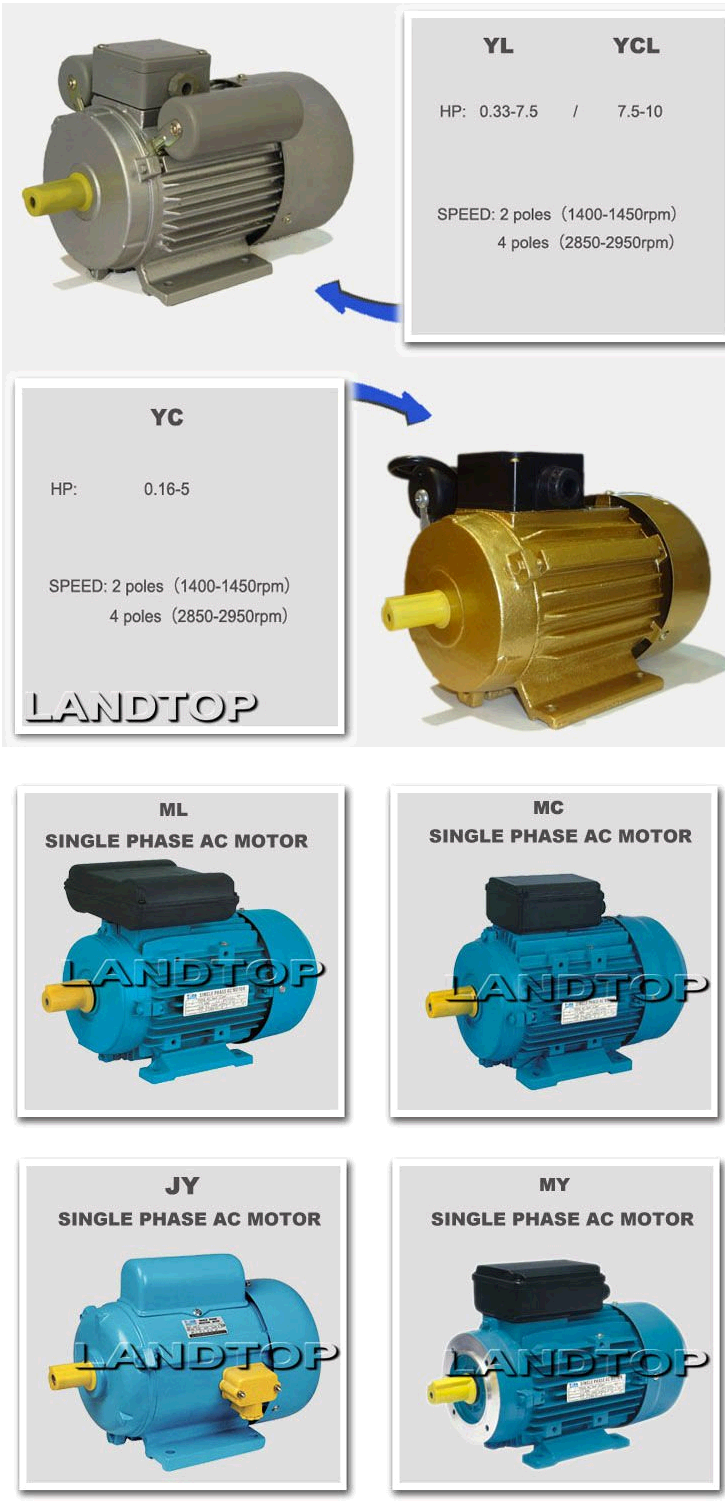

Single phase AC motor

single phase

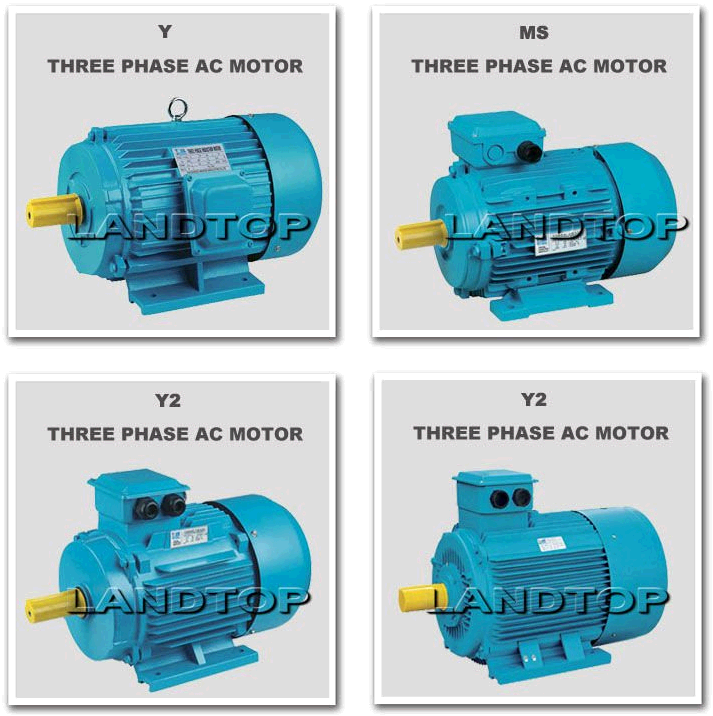

Three phase AC motor

three phase
