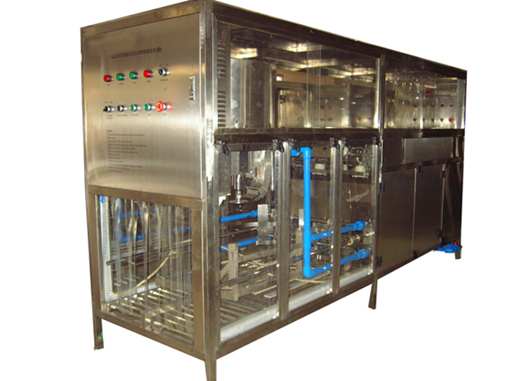

200BPH 5 gallon automatic water filling machine

This machine is completely new design absoring technical basic of Gernany,Italy and other similar equipment,special for filling pure water,distilled water,mineral water...ect sterile liquid.This machiine macthes with rinsing,filling,capping and finished products unload function,which is ideal equipment for starting a water factory.

Product Details

Quick Details

Description

filling pure water,distilled water,mineral water...ect sterile liquid.And this machine matches with rinsing,filling,capping and finished products unload function.



Specification of 200BPH 5 gallon automatic water filling machine

Voltage

220V, 380V

Power

2400w

Filling Capacity

200 bottles per hour

Bottle Spec

270*490*56mm

Plate/Pipe

SUS304

Overall Dimesion

2940*800*1480mm(5 Gallon)

Certificate

CE,ISO9001

After-sales Service Provided

 Engineers available to service machinery overseas


5 Gallons Bottle Filling line,bottling machine

PET bottle washing, filling, capping machine with outer flushing



1) Controlled by PLC (programmable logical controller) Panasonic brand which
made in China with CE marks, making the machine be easy operated and
maintained, also working steadily. The PLC is working as the brain of the
machine controlling all of the steps of the machine


2) Imported famous electric apparatus, such as LG with CE marks making it
working more safely


3) Good looking and easy be transported with the compact structure


4) Adjustable filling, the user can adjust the filling volume and the height of
the filling head according to the working state


5) Three-in-one working, (washing, filling, capping) all of the steps carried by
one machine, saving space and labor force .Can also washing bottle inside
and outer side. With separating curtain to prevent the different washing
stages being polluted


6) Pneumatic model, saving more electric monitor, and power, all of the
transmission are carried by the cylinder. The user just prepares an air
compressor to provide the air pressure. We are the only one who are making
this pneumatic models, the others are using electric monitor to drive


7) All the important and main appliances are the famous one with CE marks such
as the lamps, cylinders, cap ordering motor


8) With low water stop auto stop function to protect machine and pump well.
You can get from the error indicating



9)stainless steel 304 material



10)Conveyor with motor, bottle loading and unloading system



11)Washing bottle inside and outside



 12)PC &PETbottles available













This machine can be designed into various


working sectons as customer required:



Model

Working station

Size of the machine

Rated power

60B/H

Single row double station

2365*500*1480mm

810W

100B/H

Single row three station

2635*500*1480mm

1190W

120B/H

Single row four station

2940*500*1480mm

1200W

200B/H

double row four station

2940*800*1480mm

2400W

250B/H

double row five station

3245*800*1480mm

2800W

300B/H

double row seven station

4125*800*1520mm

7500W(heating tube 4000W)
