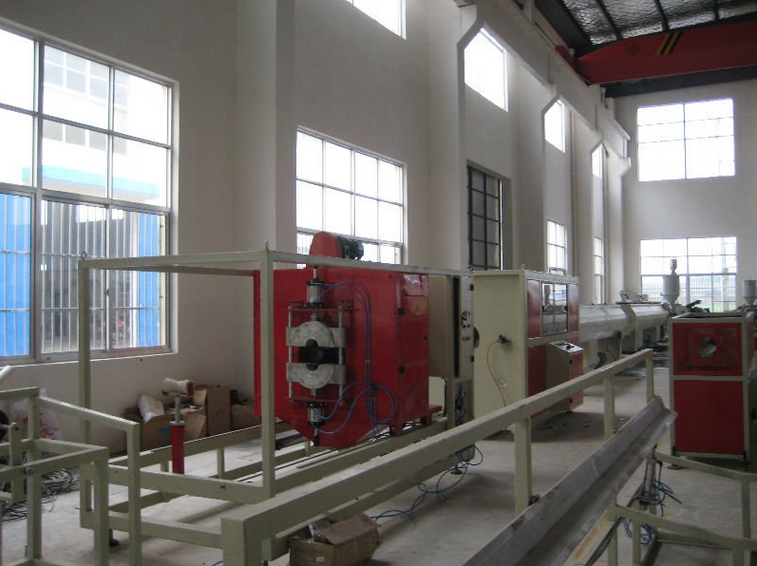

20-63mm PPR Pipe production line

Our PPR pipe production line adopts the high efficiency spiral pole extruding machine made by our company. It has the characters of high-speed extruding and high efficiency plasticized. Email:wangyuhua0321@163.com

Product Details

Quick Details Parameter

The thickness of blade: : 20-63mm
Capacity: : 100kg/h

Description

1. Features and application:

1) Our PPR pipe production line adopts the high efficiency spiral pole extruding machine made by our company. It has the characters of high-speed extruding and high efficiency plasticized.

2) Adopt special screw of barrier pattern with double poler mix-refining, and adopt motor barrel with opening dent.

3) Twice-diffluence new pattern mould is equipped, which has the characters of Iow temperature and Iow pressure extruding. And the fixing diameter cover with water pattern can guarantee the high speed production of pipe material.

4) The production line is controlled by PLC Programme, and favorable man-machine interface is set up.

5) The marked line extrusion can be choosed in the production line, which can produce the color marked pipe material. This also can produces the PE Pipe if change the mould.

3. We can exactly design the machine according to your requirements.



Ltem/Paramenter/Model Specifications


XD PP-RG-32


XD PP-RG-63


XD PP-RL-160


Extruder Model


SJ65 ×30

SJ90 ×30

SJ90×30 SJ25×25

Proudced Pipe Spedcifition(mm)

Φ20-Φ32

Φ40-Φ63

Φ75-Φ160

Production Line Speed . m/min


≥3-12

≥2-8

≥1.2-6

Compressed air.m3/min.

0.3

0.3

0.5

Cooling water flow

2

7

8

Total Power(kw)


72

115

180

Appearance Size .L×W×H. mm


20000 ×4000×1700

26000 ×4500×1750

30000 ×5000×1750

Total Weight(kg)

3500

4000

4500



Company Profile

ZHANGJIAGANG CITY XINDONG STANDARD MACHINERY CO.,LTD is located in the national sanitar---Zhangjiagang city.It is a professional plastic machine manufacture gathered with designing,developing,porducing and selling.By many years of concentrated business and combined with the practical experience,we make our porducts gradually serialization and standardization.
Our products has been widely used by a lot of well-known enterprises in China and well sold in Southeast Asia,the Middle East,the United States,Russia,South African and other countries and regions during these years entering into the market.
By professional teams and strict management,our company can produce kinds of plastic pipe extrusion line,plastic profile extrusion line,mixer,palletizing line,waste plastic recycling line and so on.At the same time in determined innovation and enterprising spirit of pioneering courage,we passed the CE certification and accreditation Switzer GSG.
Our company always take the Quality to win the trust of customers,service to win the market as operating motto and take keep hard working and stain excellent as enterprise concept to continue develop.In pursuit of prefect quality,we warmly welcome our new and old customers to come to visit.
