12-24kV Metal-clad switchgear

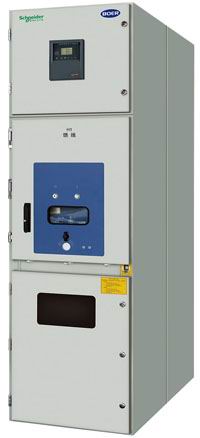

The PIX system has been designed in accordance with international (IEC) standards, and gives an optimal solution to satisfy the requirements for MV electrical networks. PIX is available in rated voltage: 12 kV, 24 kV. and rated current is up to 4000 A. PIX gives an effective internal arc withstand, tested in accordance with standards of GB,IEC and ANSI. Please contact us! Email:
yuyang@mec.com.cn

Product Details

Quick Details

Description


Skype:liukeaven
MSN:liujinglin2011@hotmail.com

Features
●  All operations are carried out with the panels and doors closed.
●  The earthing switch, with its faults-making capability, is visible through an inspection window.
●  Operation of the earthing switch uses an anti-reflex system.
●  The electrical interlocks of the DCX in conjunction with the mechanical locking devices prevent ensafe operation.
●  PIX gives an effective internal arc withstand, tested in accordance with the recommendations of IEC 60298, Appendix
●  Over-pressure release is at the top of the unit.
●  Metallic shutters closed when withdrawable module is in the disconnected position or removed.
●  Cable voltage indication.
Specifications
   Name
Data

Type
PIX12
PIX24
Rated voltage  V
12
24
Rated frequency   Hz
50/60
50/60
Rated busbar current      A
1250/1600/2000/2500/3150/4000
1250/1600/2000/2500/3150
Rated feeder current       A
630-3150/4000
630-3150
Rated short time withstand current   kA/s
25(4s)/31.5(4s)/40(4s)
16(4s)/25(4s)/31.5(4s)
Rated peak withstand current  kA
63/80/100
40/63/80
Width (mm)
650/800/1000
800/1000
Depth (mm)
1405/1650/1810
1912/2100
Height (mm)
2330
2530


Company Profile

We specialize in the production of primary power equipment, including metal oxide surge arrester(MOA), polymer housed metal oxide arrester for transmissionlines, metal oxide varistor,on-line monitors for surge arrester and surge arrester monitor and so on.
After 30years technical innovation and industrial transformation, we have yearly production capacity for 4.5 million pieces ofΦ32-128metal oxide varistor (MOV), 0.5 million sets of 0.22-1000KV metal oxide surge arrester.
Our main products have passed ISO9001 quality management system certificate, ISO14001 environment management system certificate, OHS18001 occupational health and safty management system certificate and KEMA Netherland certificate.
Our arrester market share reaches above 32% in China market, especially 500KV surge arrester bid winning rate in the scale bidding of state grid corporation of China in the lastest three years, was the top one during the same industry in China.
