  • 100KW Wind Turbine Generator

100KW Wind Turbine Generator

100KW Wind Generator 1. Start in 3.5m/s. High efficienta 2. pitch control 3. anticorrosive processing 4. CE ISO

Product Details

Quick Details Parameter

Place of Origin: : Shanghai, China
Brand Name: : NL
Model Number: : NL-100KL
Type: : Wind Power Generator
Name: : 100KW Wind Generator
Leaf number: : 3
Starting Wind Speed: : 3.5 m/s
Vibration: : low
Resistance torque: : low
Output capacity: : high
Leaf Material: : GFRP strengthening
Power: : 100kW
Color: : white

Description


100KW Wind Generator

Products Range: 100W~2mW

1. Dual, automatic emergency braking system.

2. Unique Anti-Vibration design.

3. Waterproofing.

4. Unique Anti-Vibration design.

5. Efficient Aero-dynamic design, Compared with the vertical shaft, power utilization rate is greatly improved.

6. High strength, corrosion resisting aluminium alloy.

7. Unique permanent magnetic material generator, Small size, light weight, power output is very high.

8. Low noise level.

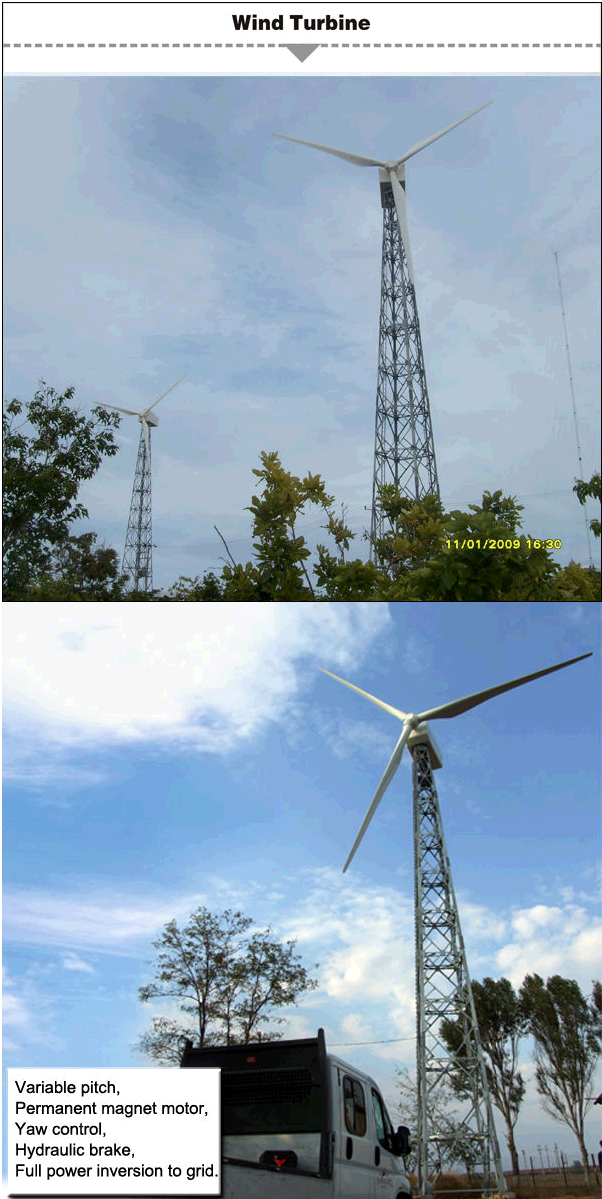

100KW Wind Turbine Generator

100KW Wind Turbine Generator

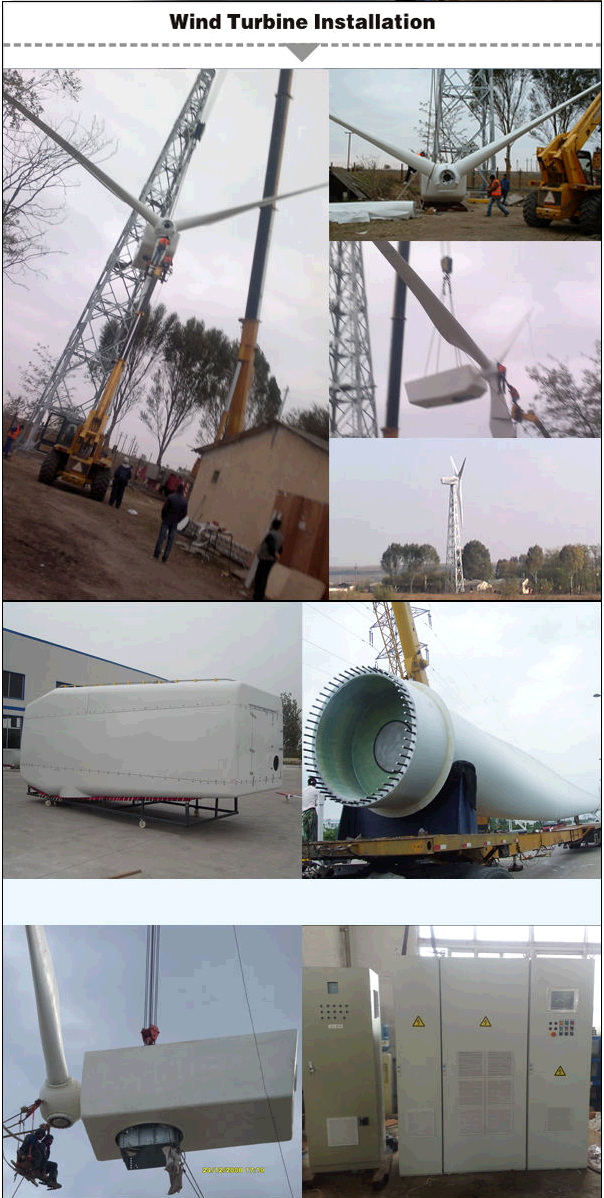

Wind Turbine Installation

installation

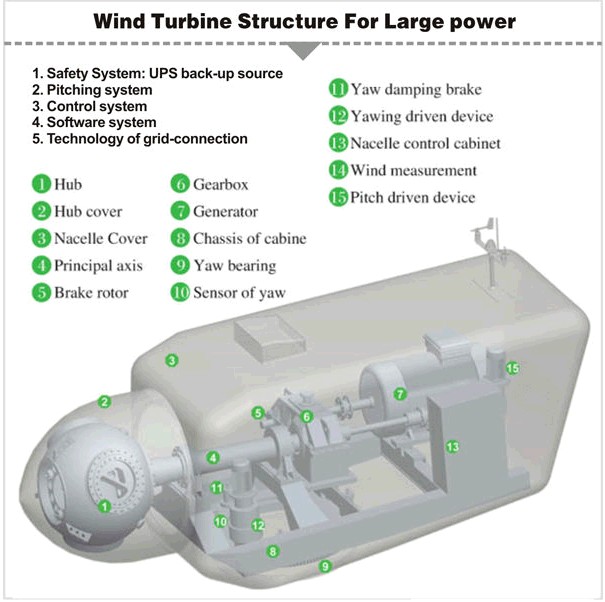

Wind Turbine Generator Structure for Large Power

structure


The generator is therare earth permanent magnet generator.

1. High pure copper wire winding, power generation high efficiency and stability.

2. Special design of stator and rotor, small starting resistance moment, and good heat dissipation.

3. Gearless, direct drive, low speed, the operation is simple, safe, and convenient to maintenance.

4. Die casting aluminum alloy shell, anticorrosive processing, resistance to acid and alkali, salt corrosion.


Technical parameters

Model
NL-50KXL
NL-100KXL
NL-200KXL
NL-300KXL
Rated power
50kW
100kW
200kW
300kW
Output voltage
400V
500V
690V
690V
Started wind
2.5m/s
3.0m/s
3.5m/s
3.5m/s
Rated wind
13.5m/s
12 m/s
12.5 m/s
12.5 m/s
Safety wind
45/m/s
60m/s
60m/s
60m/s
Rotor diameter
16.4m
21.7m
27.55m
33.48m
Blade length
8m
10.35m
13.2m
16m
Blade weight
300Kg
360Kg
500Kg
750Kg
Tower height
24m
30m
30m
35m
Main braking system
Blade pitch contrd
Second braking system
High speed shaft brake disc
Lightning protection system
IEC-61024-1
Resistance value of WTGS earth
4 Ω
Blade number
3
Blade material
GFRP strengthening
Generator
Asynchronous
Surface antisepsis
multi-layers paint
Control System
PLC with remote monitoring
Temperature
-40°C-80°C
Lubrication
Splash pressure lubrication

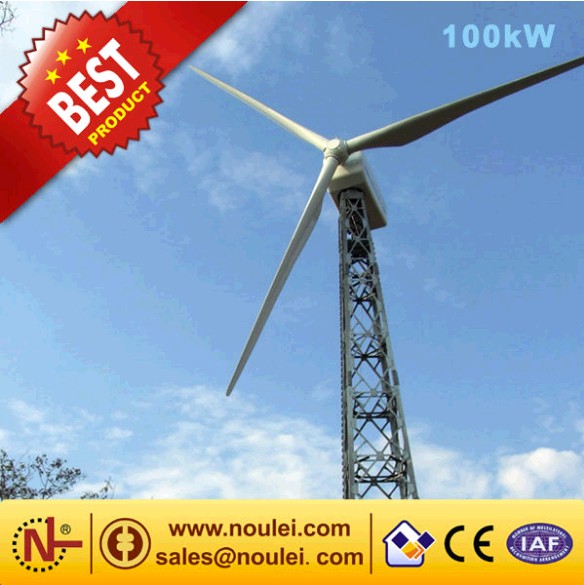

100KW Wind Turbine Generator
