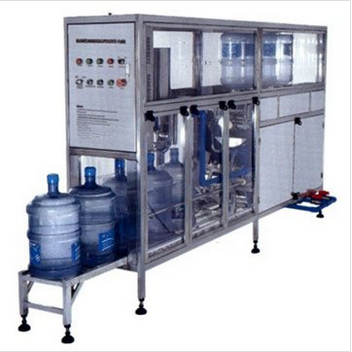

100BPH 5 gallon automatic water filling machines

 This machine is a completely new design absorbing technical basis of Germany,Italy and other similar equipment,special for filling pure water,distilled water,mineral...ect sterile liquid.This machine macthes with rinsing,filling,caping and finished products unload function,which is ideal equipment for starting a water factory.

Product Details

Quick Details

Description



Automatic water filling machine is special equipment for filling pure water,distilled water,mineral...ect sterile liquid.


Specification of 100BPH 5 gallon automatic water filling machine(single row three stations)

Voltage

AC220V380V50Hz

Power

1190W

Filling Capacity

100 bottles per hour

Bottle Spec

270*490*56mm

Overall Dimesion

2635*500*1480mm

Certificate

CE,ISO9001




PLC control, 3 in 1 washing filling and capping, full automatic and easy operation, high efficiency, low cost








5 Gallons Bottle Filling line,bottling machine
PET bottle washing, filling, capping machine with outer flushing



1) Controlled by PLC (programmable logical controller) Panasonic brand which
made in China with CE marks, making the machine be easy operated and
maintained, also working steadily. The PLC is working as the brain of the
machine controlling all of the steps of the machine


2) Imported famous electric apparatus, such as LG with CE marks making it
working more safely


3) Good looking and easy be transported with the compact structure


4) Adjustable filling, the user can adjust the filling volume and the height of
the filling head according to the working state


5) Three-in-one working, (washing, filling, capping) all of the steps carried by
one machine, saving space and labor force .Can also washing bottle inside
and outer side. With separating curtain to prevent the different washing
stages being polluted


6) Pneumatic model, saving more electric monitor, and power, all of the
transmission are carried by the cylinder. The user just prepares an air
compressor to provide the air pressure. We are the only one who are making
this pneumatic models, the others are using electric monitor to drive


7) All the important and main appliances are the famous one with CE marks such
as the lamps, cylinders, cap ordering motor


8) With low water stop auto stop function to protect machine and pump well.
You can get from the error indicating



9)stainless steel 304 material



10)Conveyor with motor, bottle loading and unloading system



11)Washing bottle inside and outside



 12)PC &PETbottles available



This machine can be designed into various working sectons as customer required:







Model





Working station





Size of the machine





Rated power





60B/H





Single row double station





2365*500*1480mm





810W





100B/H





Single row three station





2635*500*1480mm





1190W





120B/H





Single row four station





2940*500*1480mm





1200W





200B/H





double row four station





2940*800*1480mm





2400W





250B/H





double row five station





3245*800*1480mm





2800W





300B/H





double row seven station





4125*800*1520mm





7500W(heating tube 4000W)
