  • 1.0T - 1.8T Gasoline/LPG Forklift

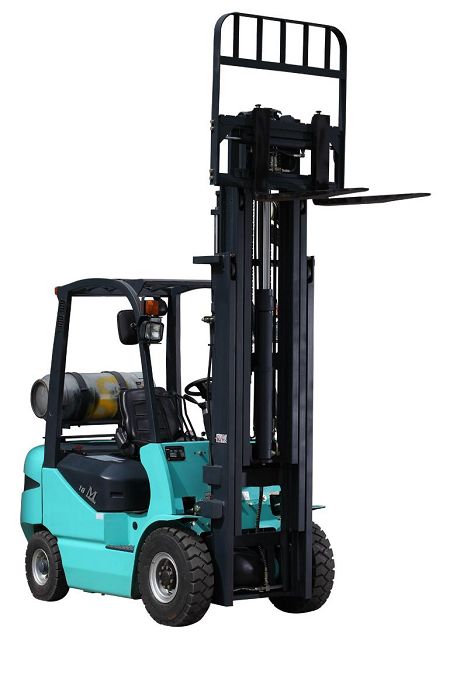

1.0T - 1.8T Gasoline/LPG Forklift

Two alternatives of engine: Imported Mitsubishi 4G64, Nissan K21 engine and domestic WF491GP engine. Economical but powerfulenough.

Product Details

Quick Details

Description

Model



FG10T

FG15T

FG18T

Power Type



Gasoline/LPG

Rated Capacity

kg

1000

1500

1800

Load Centre

mm

500

Lift height

mm

3000

Free Lift Height

mm

135

Fork size

LxWxT

mm

920x100x35

Mast tilt angle

F/R

Deg

6°/12°

Rear Overhang

mm

420

470

515

Ground clearance(Bottom of mast)

mm

130

Overall demensions

Length to face of fork

mm

2250

2270

2315

(Without fork)

Overall width

mm

1070

Mast lowered height

mm

2015

Mast extended height

mm

4010

(With backrest)

Overhead guard height

mm

2060

Turning radius (outside)

mm

1995

2040

2075

Min.right angle stacking aisle width

mm

1800

1825

1857

(add load length and clearance)

Self weight

kg

2340

2590

2800

Transmission

Manufacture



CHINA

Type



Powershift

Stage

FWD/RVS



1/1

Operating pressure (For attachments)

Mpa

14.5



1. Two alternatives of engine: Imported Mitsubishi 4G64, Nissan K21 engine and domestic WF491GP engine. Economical but powerfulenough.
2. Transmission: with TCM technology.
3. Man-machine engineering designs,  including the floating shock absorber configured  on the engine, the elastic linked steering axle,  the  redirector  providing low torsional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving.
4. The optional engines meet EU stage-III mission control regulation and obtain EPA accreditation.

1.0T - 1.8T Gasoline/LPG Forklift


Company Profile

Shintool Machinery Co., Limited, is located in Hangzhou, the export base for Material Handling Equipments and forklift parts in China.

As a warehouse owner always have a headache that choosing some warehouse equipments from many chinese manufactories. Or as a importer want to import a full container products, but the products are spread in different cities. They want a professional export team to supply ONE-STOP-SHOP service to solve their problems.

Our professional SHINTOOL sales team have more than 6 years experience on this line of business. If you want to buy the warehouse equipments like forklifts, electric stackers, tow truck, container ramps, lifting tables, mobile lifting platforms and so on. We can supply you the quality products with in competitive price. All of the machine manufactories are near to Shanghai sea port and Ningbo seaport.

We can also supply the ONE-STOP-SHOP service for helping the buyer to collect full container products (which spread in different cities) and make one Bill of lading export solution. Our reliable cooperated export agent have warehouses in Ningbo and Shanghai sea port. With highly experienced team, they can clear the chinese custom smoothly and efficiently.

We can also supply the chinese brand forklift parts purchase solution

During these years, Chinese brand forklifts have a good market around the world. After years' developing, the forklift after-sales market developed. Chinese forklift have many brands, each brand has their own parts no.s. The professional forklift parts dealers or the sub-dealers want a professional chinese forklift parts supplier who can supply the correct chinese brand forklift parts within competitive price.

Our professional sales team can also supply the ONE-STOP-SHOP service on the line of Chinese brand forklift parts, with well known about this forklift industry, our main servicing chinese forklift brands including: HELI, HC, TCM, EP, Maximal, BAOLI, Liugong, Shangli, UN and so on. We can also supplying the Chinese OEM made Japanese engine parts, such us ISUZU, YANMAR, NISSAN and so on.
