  • 1.0T - 1.8T Diesel Forklift

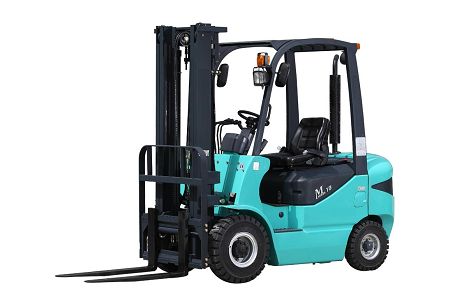

1.0T - 1.8T Diesel Forklift

Transmission of 1.0T - 1.8T Diesel Forklift is with TCM technology.

Product Details

Quick Details

Description

Model



FD10T

FD15T

FD18T

Power Type



Diesel

Rated Capacity

kg

1000

1500

1800

Load Centre

mm

500

Lift height

mm

3000

Free Lift Height

mm

135

Fork size

LxWxT

mm

920x100x35

920x100x35

920x100x38

Mast tilt angle

F/R

Deg

6°/12°

Rear Overhang

mm

420

470

515

Ground clearance(Bottom of mast)

mm

130

Overall demensions

Length to face of fork

mm

2250

2270

2315

(Without fork)

Overall width

mm

1070

Mast lowered height

mm

2015

Mast extended height

mm

4010

(With backrest)

Overhead guard height

mm

2060

Turning radius (outside)

mm

1995

2040

2075

Min.right angle stacking aisle width

mm

1800

1825

1857

(add load length and clearance)

Self weight

kg

2340

2590

2800

Transmission

Manufacture



CHINA

Type



Powershift

Stage

FWD/RVS



1/1

Operating pressure(For attachments)

Mpa

14.5



1.Three alternatives of engine: Imported Isuzu C240, Yanmar 4TNE92 engine, and domestic Xinchai NB485. Economical but powerful enough.
2.Transmission: with TCM technology.
3.Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low torsional moment, the semi-floating bonnet with built-in heat  and sound insulation,  ensure  the  comfort of driving.
4.The optional imported engines meet EU stage-III mission control regulation and obtain EPA accreditation.

1.0T - 1.8T Diesel Forklift
