•  The decorticating and separating equipment for mung beans(TFD600)

The decorticating and separating equipment for mung beans(TFD600)

 The decorticating and separating equipment for mung beans(TFD600)
1.CE, ISO 9001:2008 & TUVcertified
2. patented product
3. dried method peeling
Please contact us:jiangyanmei081@163.com

Product Details

Quick Details

Description

 The decorticating and separating equipment for mung beans(TFD600)

 [Functions and Features]
   The decorticating and separating equipment (TFD600) for mung beans is our company’s patented product with the independent intellectual property, which contains two national patents, and is a special equipment for peeling mung beans. it can be used to decorticate beans, separate the bran from the decorticated mung beans. The equipment features the following characteristic: higher automatic degree, timing for processing, alarming by sound and light, parking and self-locking, higher percentage of decorticated beans, and better effect for decorticating.

[Component]

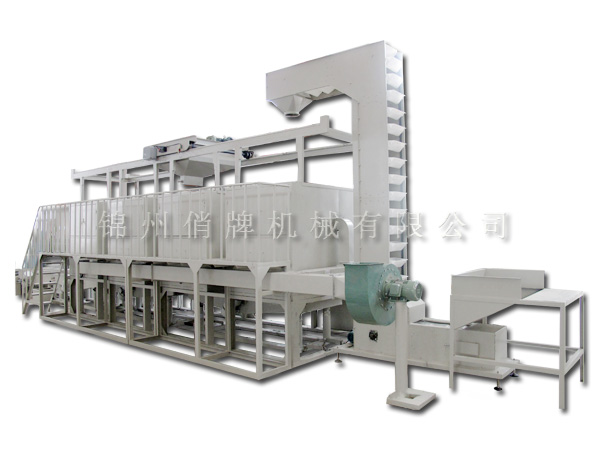

  The equipment consists of the input hopper, elevator, top-mounted trolley, grinder (4sets), vibrating screen (2sets), sieve for sorting out bran and separating sieve.

[Process]
Feeding  →    elevating   →    conveying →    grinding →    vibro-screening  →    sorting out bran  →   separating →    peeled beans

[Technical parameters ]

Power: 34.1kw (380v 3phase 50Hz)
Processing capacity: 600kg/h min.
% of decorticated beans recovery: 75% min.
% of the whole decorticated beans: 42% min.
Space occupied: 11m × 2.1m
Height: 3.2m
