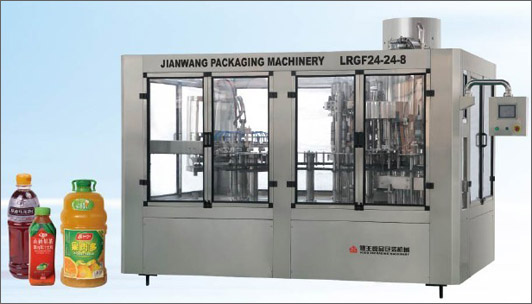

•  LRGF Series Washing, Filling and Capping3-in-1 Unit

LRGF Series Washing, Filling and Capping3-in-1 Unit

The equipment is used in production of non-carbonated drink of minerals and pure water packed in polyester bottles. haishiqi12@yeah.net

Product Details

Quick Details

Description

Application:
The equipment is used in production of non-carbonated drink of minerals and pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine. The whole machine have scientific and reasonable design, beautiful appearance, complete functions, easy operation and maintenance, a high degree of automation. The most advanced technology from Italy and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180°along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically. The frequency was adjusted to stepless speed. The production capacity can be displayed digitally and can be adjusted conveniently.

Model

LRGF14-12-5

LRGF16-16-6

LRGF18-18-6

LRGF24-24-8

LRGF32-32-10

LRGF40-40-12

Production Capacity(500ml)(b/h)

4000

5000

8000

10000

12000

15000

Total Power(kw)

2.2

2.2

2.2

3.2

5.6

6.6

Dimension(L×W×Hmm)

2500×1600×2600

2700×1800×2300

2800×1900×2300

3100×2350×2300

3300×2400×2300

3900×3000×2300

Weight(kg)

3000

3500

3600

3800

4500

6000

Company Profile

Zhangjiagang Jianwang Food Packing Machinery Co., Ltd. previously named Zhangjiagang Food Packing Machinery Factory, is specializing in researching, designing, developing and manufacturing food packing machineries. We have rich technology as support and take the lead in the designing of new products. We have the ability to produce more than 20 kinds of products of different models, which sell well in more than 20 cities, provinces and autonomous regions in China, at the same time, they are good sale in overseas markets such as Southeast Asia, Middle East and Russia.


Since the year of 1978 when it was set up, we have been producing beverage machineries and meat-packing machineries. In 1994, a new assembly line of producing negative pressure filling machine was set up and in 1996, we were awarded the permit of proportioning device production and passed the approval of proportion. In 1998,we began to produce LRGF automatic washing, filling machine, QTGF series three to five gallon barrel filling assembly line; QP-320 heavy-duty chip sutter, ZGJ series 1050 cubes cutter, etc. AII these machines have taken in the high technology from German, Italy and Japan to show the advanced world technology in the 1990’s. We have won many national patents and our products are improved in our practice. We hope that we can offer more perfect packing for your excellent products.
