High Quality Chinese Facotry Lancing Composite Sand Prevention Tube

1.High quality with best price.
2. Excellent service.
3.Digital control
4.Full protection

Product Details

Quick Details Parameter

Place of Origin : Panjin, China
Section Shape : Round
Secondary Or Not : Non-secondary
steel tube Welded Line Type : Longitudinal
Technique : Hot Rolled
Payment Terms : L/C,T/T

Description

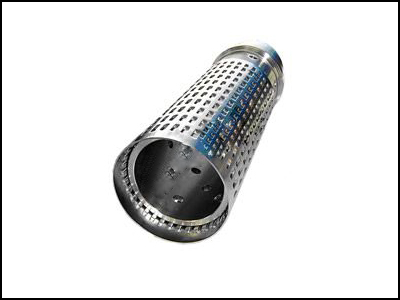

 High Quality  Chinese Facotry Lancing Composite Sand Prevention Tube

(1)Multilayer stainless steel tight mesh grid composite filtering layers, with high sand prevention reliability.
(2)Strong extrusion deformation and bending deformation resistance, unchangeable sand prevention in 40% radial deformation, meet operating requirements of horizontal wel
(3)Larger filtering area, low flow resistance, and high output.
(4)Accurate and controlled size of filtration hole (error less than 5mm), stable and undeformed filtration hole.
(5)Uniform filtration holes, high permeability, strong blocking resistance, 2-3 times of blocking cycle than that common screen pipe, facilitating backwashing.
(6)Standard sleeve or oil tube as base tube, filter layer made of highquality stainless steel with strong corrosion resistance to CO2, CL- and H2S, and adaptability to acidizing treatment. (7)Small external diameter, light weight, facilitating pushing in place in long-distance horizontal section.



基管Basic tube

Compound control tube slot

diameter

Weight(kg/m)

Maximum overall diameter

(kg/m)

2-3/8”

6.86

3”(76mm)

12

2-7/8”

9.55

3.5” (89mm)

15

3-1/2”

13.8

4.3” (110mm)

20

4”

14.1

4.9” (124mm)

22

4-1/2”

17.4

5.3” (135mm)

25

Company Profile

Panjin chang tai Petroleum Tubular Co.,LTD(CHT),is located in the shore of Liaohe oil field which is known as chinese third largest oil field.It is a modem,professional,international OCTG manufacturing enterprise.After years of continuous development,continuous improvement, it has formed a relatively complete industrial scale with a strong comprtitiveness and growth potential.

Main products include four categories:tubing,casing,drill pipe and  the sieve tube. Product specitications include the ф60.3~ф508mm,follow the API standard and non-API series of products.It also produces various specifications of line pipe to meet the reguirements of different customers.

Company always follows the  ISO9001 and APIQ1 quality management system, and the quality polidy of scientific management, the best service ,the best quality and continuous improvement to provide customers with quality products and services .We always insist on the quality first ,integrity-based enterprise concept to ensure that substandard products do not put into production ,substandard products are not to order ,substandard products do mot leave the factory .Unswervingly follow the ISO14001andISO18000 environmental management system in creating material civilization and promoting the basic principles and core values of human society ,and promote the harmonious development of society.

 OCTG prdduced by company are widely used in Liaohe Oilfield.Jilin Oilfield ,Daqing Oilfield,Prolong Oilfield and other major domestic oil companies ,and exported to the United States,Canada,Kazakhstan,Central Asia,the Middle East and other countries and regions ,and access a wide range of Identity ,the company is one of major OCTG production bases in  China.
