•  Gantry type hevvy duty industrial plasma cutting machine for sale, high performance

Gantry type hevvy duty industrial plasma cutting machine for sale, high performance

1.High-accuracy industrial
plasma cutting machine
2.High efficient, solid
3.Auto nest software,save material

Product Details

Quick Details

Description

According to customer demand computer programming cutting







         Honeybee Gantry CNC Cutting Machine is a kind of automatic cutting equipment which is combined CNC system, precise



mechanical drive and air cutting technology. It is widely applied to manufacture and cutting steel field, such as, the ship building



industry, steel construction, construction machinery, mining machinery, pressure vessel and vehicle, petrochemical, etc.





The machine includes the cross beam, trolley, longitudinal rails, CNC system, moving system and electric system, etc. You can



choose the different CNC system, Honeybee CNC system, Vup CNC system, USA Hypertherm CNC system. Support USA



Hypertherm, Thermadyne and Kjellberg plasma power sources. For the driving mode, if the track span is less than 4m, the



Gantry CNC Cutting Machine is single drive, if over 4m, it is double drives. In order to ensure the stability of machine under



rapidly runnning, we use the heavy trolley for the Gantry Cutting Machine which equiped Hyperformance plasma power sources



 or its track span over 6 meters. With automatic correction function to keep the long-term working precision.





Standard Model List of Gantry CNC Cutting Machine   HBCNC-4000*10000*1A+4C





Track Span(m)

3.5

4

5

5.5

6

8

10

Rail length(m)

12

12

14

14

14

16

16

Every the length of rail is 2m, Can be lengthened according to Users demand.

Torch No.

2 oxy-fuel torches as standard. Torch quantity can be customized.

1 plasma torch. Double plasma torches can be customized.

Max cutting Area

2.6*10

3.1*10

4.1*12

4.6*12

5.1*12

7.2*14

9.2*14

Cutting thickness

2-64mm Depends on plasma power capacity (Plasma)

Driving Mode

Single driving

Dual driving

CNC system

Hypertherm controller or ESAB or VUP

Program software

Australia FastCAM professional edition

Speed Range

0~10000mm/min

Cutting gas

Oxygen+acetylene/Propane; plasma cutting gas depends on plasma model

Option

Oxy-fuel: Auto-ignition, Auto THC, Powder marking, Linear Triple Torches;

Plasma: Auto THC.

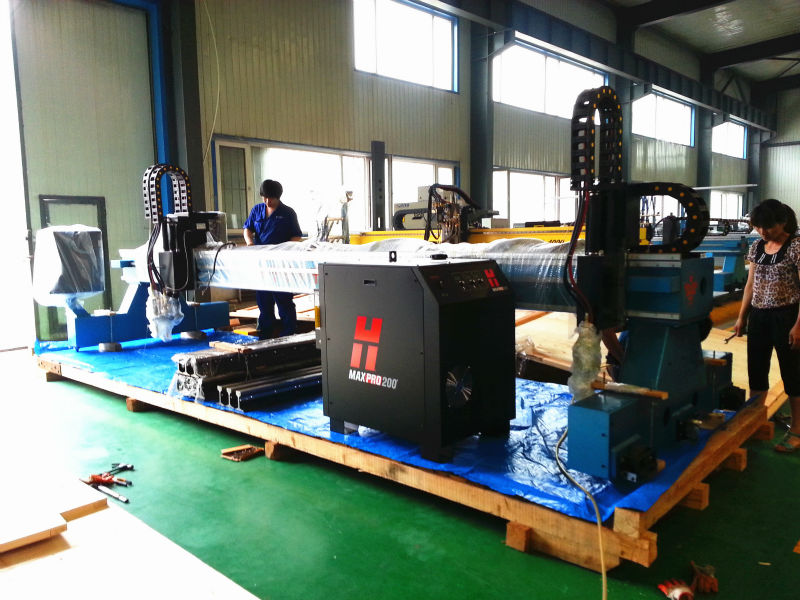

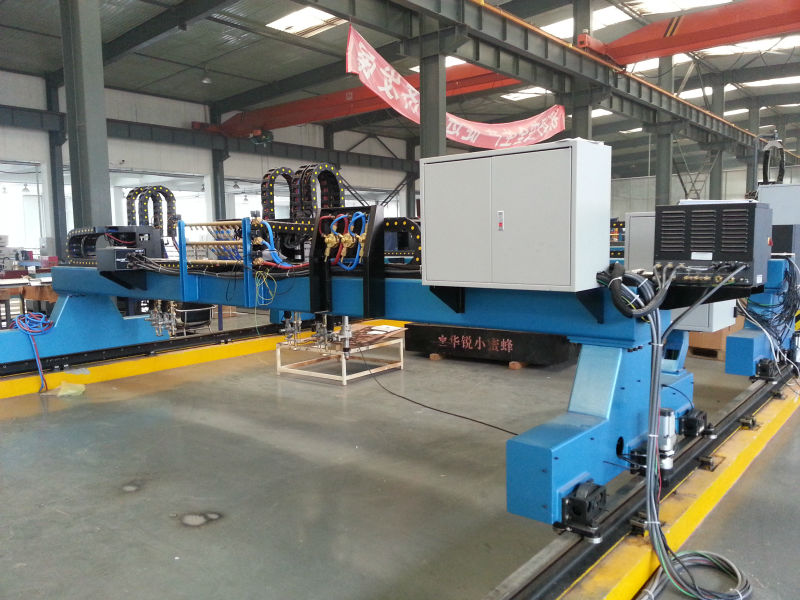

Overview of the machine:

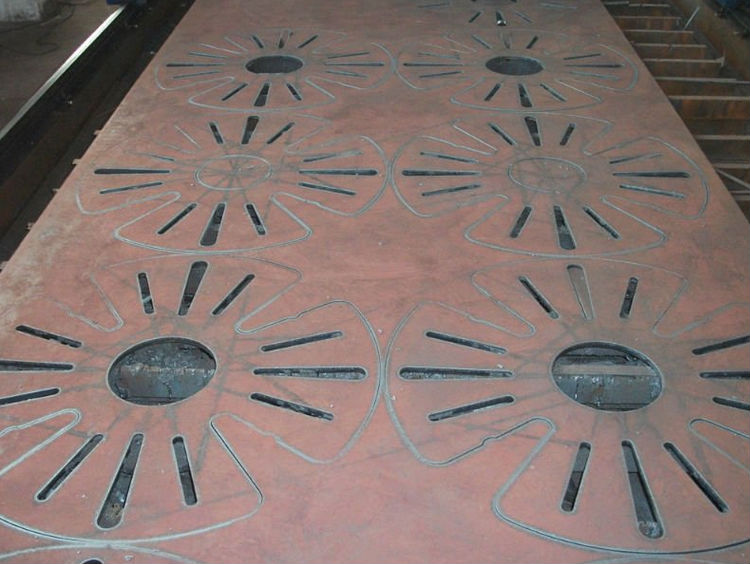

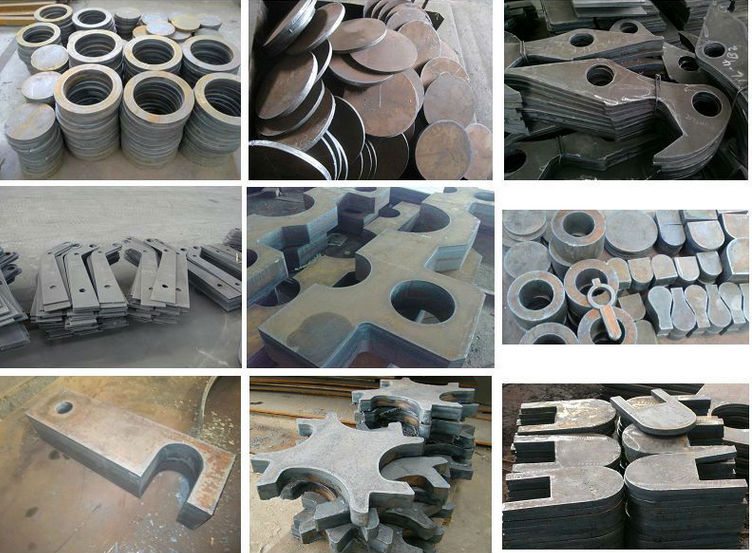

Samples of cutting and Applications of the CNC CUTTING MACHINES:

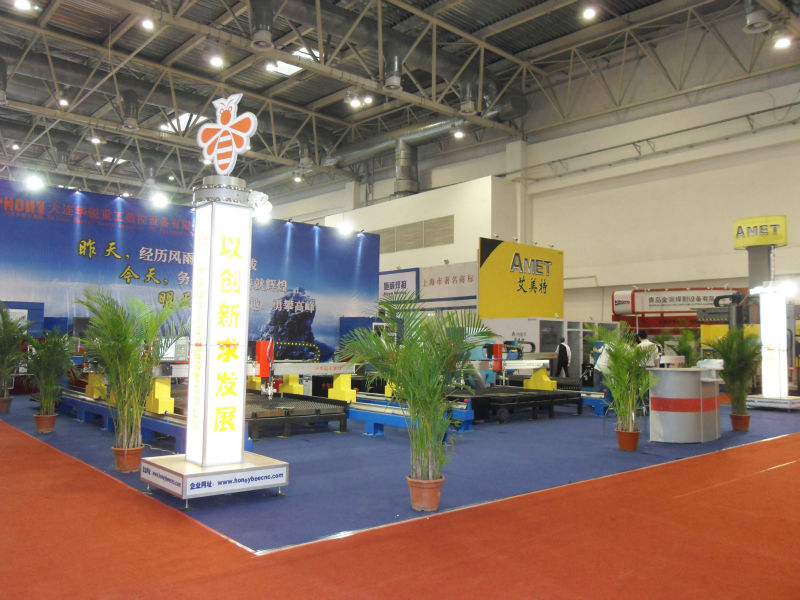

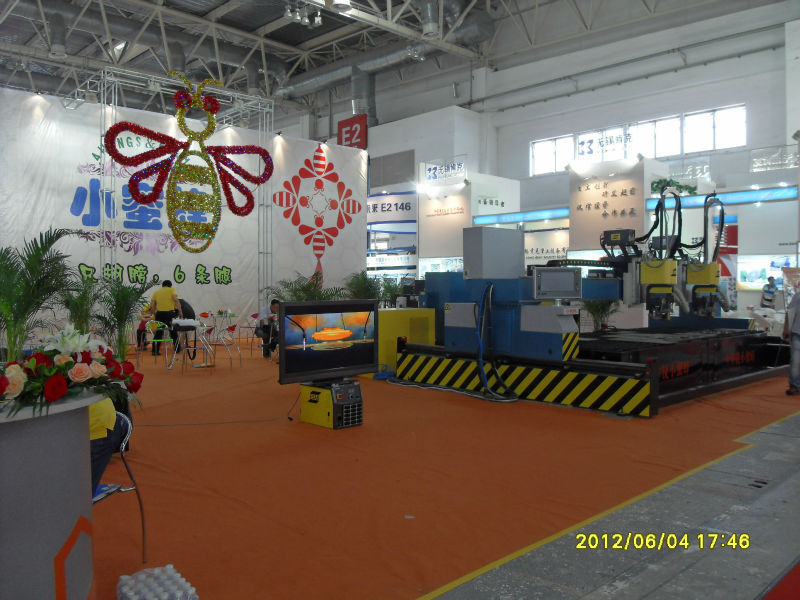

Exhibitions:







Package:

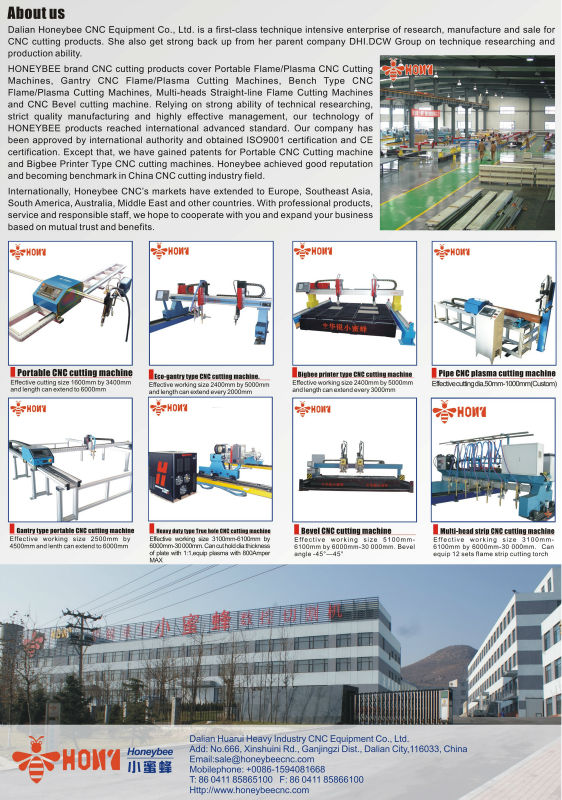

Company Profile

Dalian Huarui Heavy Industry CNC Equipment Co., Ltd., a subsidiary of Dalian DHI-DCW Group Co., Ltd., is a first-class technique intensive enterprise of research, manufacture and sale by taking advantage of first grade technique researching ability and production ability of DHI-DCW Group Co., Ltd. Our HONEYBEE brand CNC cutting products include Portable Flame/Plasma CNC Cutting Machines, Gantry CNC Flame/Plasma Cutting Machines, Bench Type CNC Flame/Plasma Cutting Machines, and Multi-head Straight-line Flame Cutting Machines. Relying on strong ability of technical researching, strict quality manufacturing and highly effective management, our technology of all HONEYBEE products reach international advanced standard. Our company has firstly passed the evaluation of ISO9001 certification and CE certification. Especially, we have attained a patent for Portable CNC Cutting machine. In Chinese cutting machinery market, Honeybee has become very famous in the Portable CNC cutting field.With the belief of rejuvenating national cutting machine manufacturing industry, combining strong the ability of technical research and effective management, focusing on the talented and technical recreation, we make all efforts to build an international brand as one of Chinese leading cutting equipment manufacturers. Nowadays, our markets have extended to Europe, Southeast Asia, South America, Australia, the Middle East and other countries and regions with professional sales service and responsible sales members. We are always looking forward to business cooperation with overseas customers based on mutual benefits.
